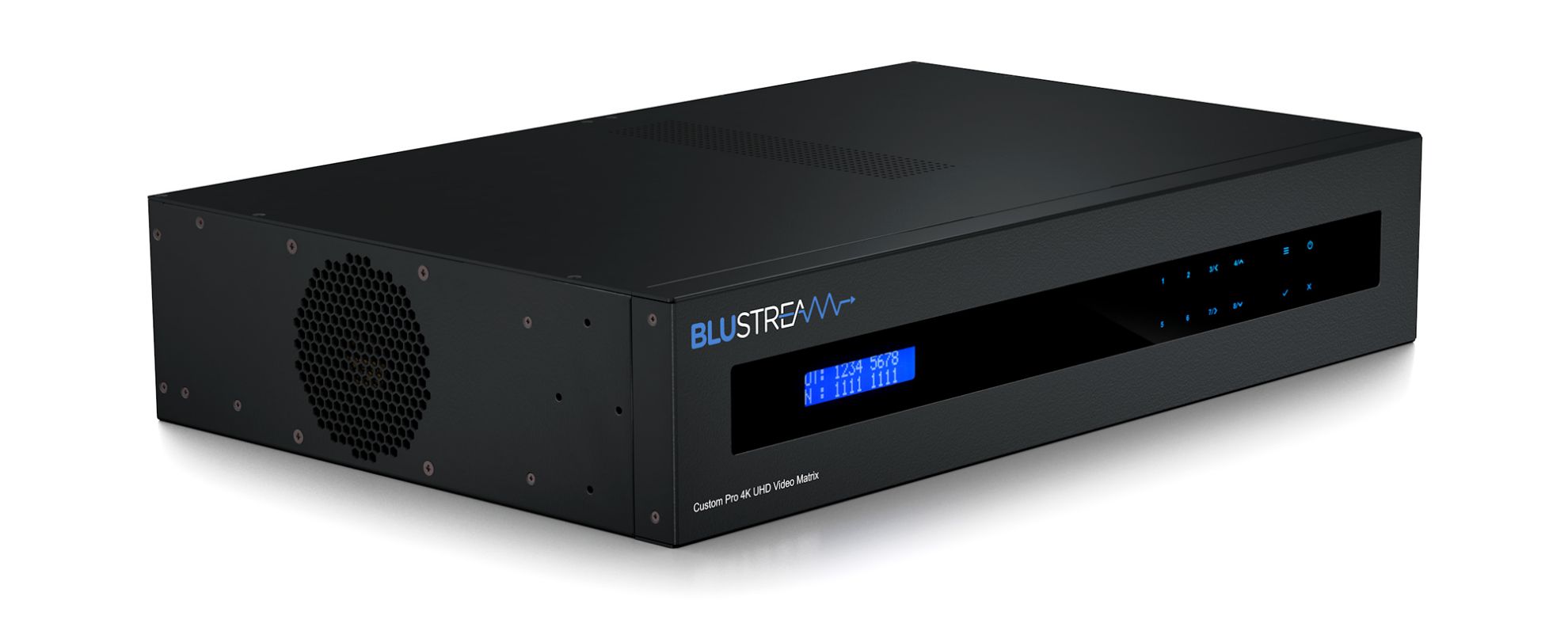

PRO88HBT100CS
£4,399.00 + VAT
The PRO88HBT100CS is an HDMI 2.0 matrix supporting 4K 60Hz 4:4:4 and HDCP 2.2, using CSC technology to transmit HDMI, bi-directional IR, and PoC over a single CAT cable for distances up to 100m (or up to 70m for 4K HDR). It also features independent 4K-to-1080p downscaling on the CSC HDBaseT™ outputs, enabling lower-resolution displays to show content from 4K sources while still delivering full 4K UHD quality to compatible screens. The 100m Custom Pro 8×8 HDBaseT™ CSC Matrix delivers exceptional 4K HDR performance designed specifically for the custom installation market.
Additional capabilities include four simultaneous HDMI outputs, audio breakout with line-level pre-amp volume control, and a built-in web browser interface for easy control and system configuration.
Custom Pro 8×8 HDBaseT™ CSC Matrix – 4K 60Hz 4:4:4 to 70m (1080p up to 100m) – supports 4K HDR, IP / RS-232 Control, PoC, 2-Way IR, 4x Simultaneous HDMI outputs, Audio Breakout with volume control, HDCP 2.2
1 x Custom Pro Hub Matrix
1 x PRO-8RS232
2 x PRO-IN4HAB
1 x PRO-8ABV
1 x PRO-8IR-V2
1 x PRO-OUT4TCS
1 x PRO-OUT4HTCS
*Individual boards dispatched separately for assembly by installer
1 x 24V/8A Power Supply
1 x Remote Control
1 x Rack Mounting Kit
1 x Quick Reference Guide
• Video Input Connectors: 8 x HDMI Type A, 19-pin, female
• Video Output Connectors: 8 x HDBaseT™ RJ45 connector, 4 x HDMI Type A, 19-pin, female
• Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
• TCP/IP Control: RJ45, female
• Ethernet / Network: RJ45, female
• IR Input Ports: 9 x 3.5mm stereo jack
• RS-232 Serial Port: DB-9, female
• Rack Mountable: 2U rack height, rack ears included
• Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
• Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
• Shipping Weight: 5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 24V/8A DC
