PRO88HDMI-V2
£2,299.00 + VAT
The Custom Pro 4K Matrix delivers exceptional performance and unmatched flexibility. AV installers can tailor the I/O configuration and select the control features needed to suit any project. Engineered for demanding AV environments, the matrix features a durable chassis and an interlocking board design that simplifies both installation and ongoing maintenance. Optional advanced capabilities include audio breakout, simultaneous HDBaseT™/HDMI outputs, RS-232 pass-through, and a web browser interface module for enhanced system control and configuration.

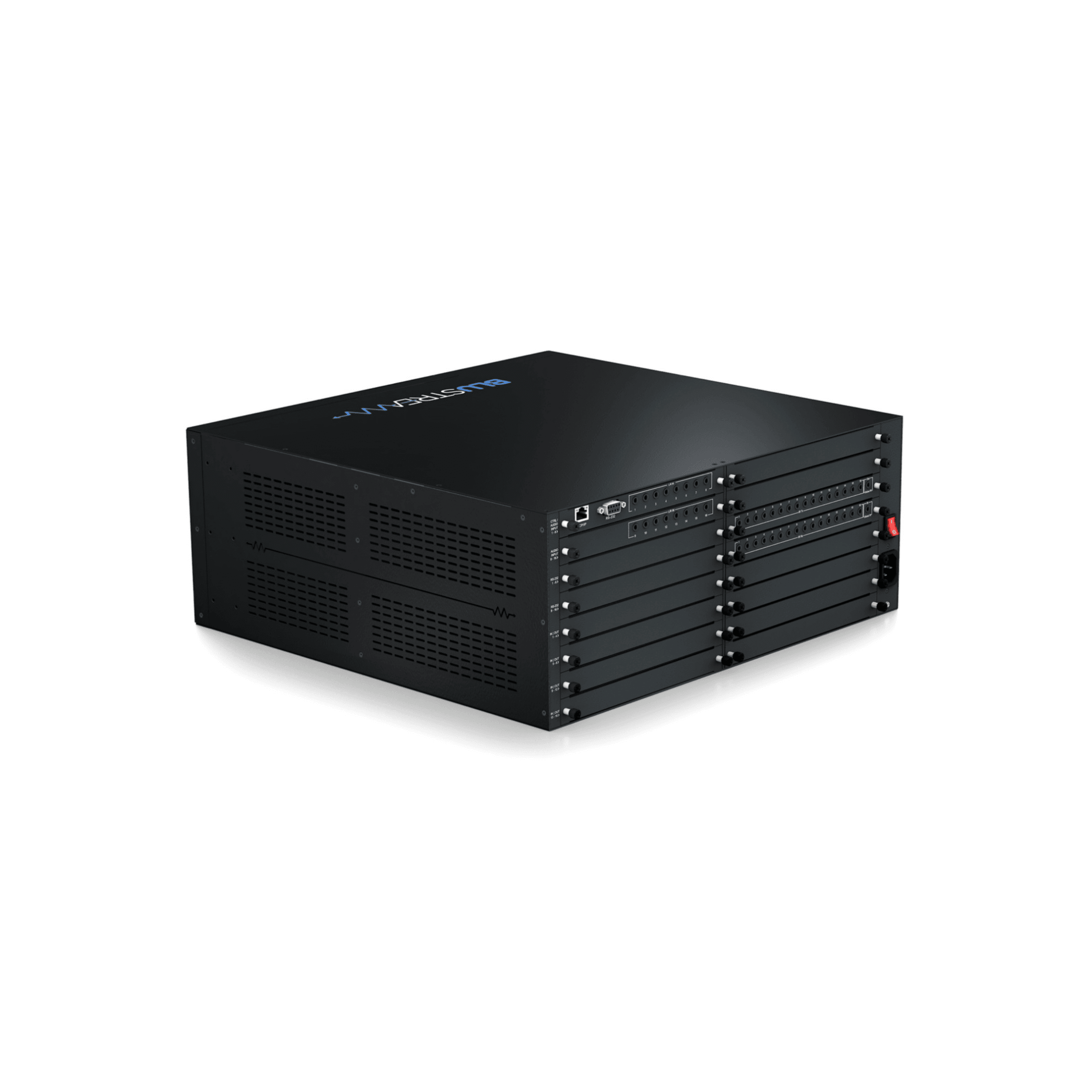

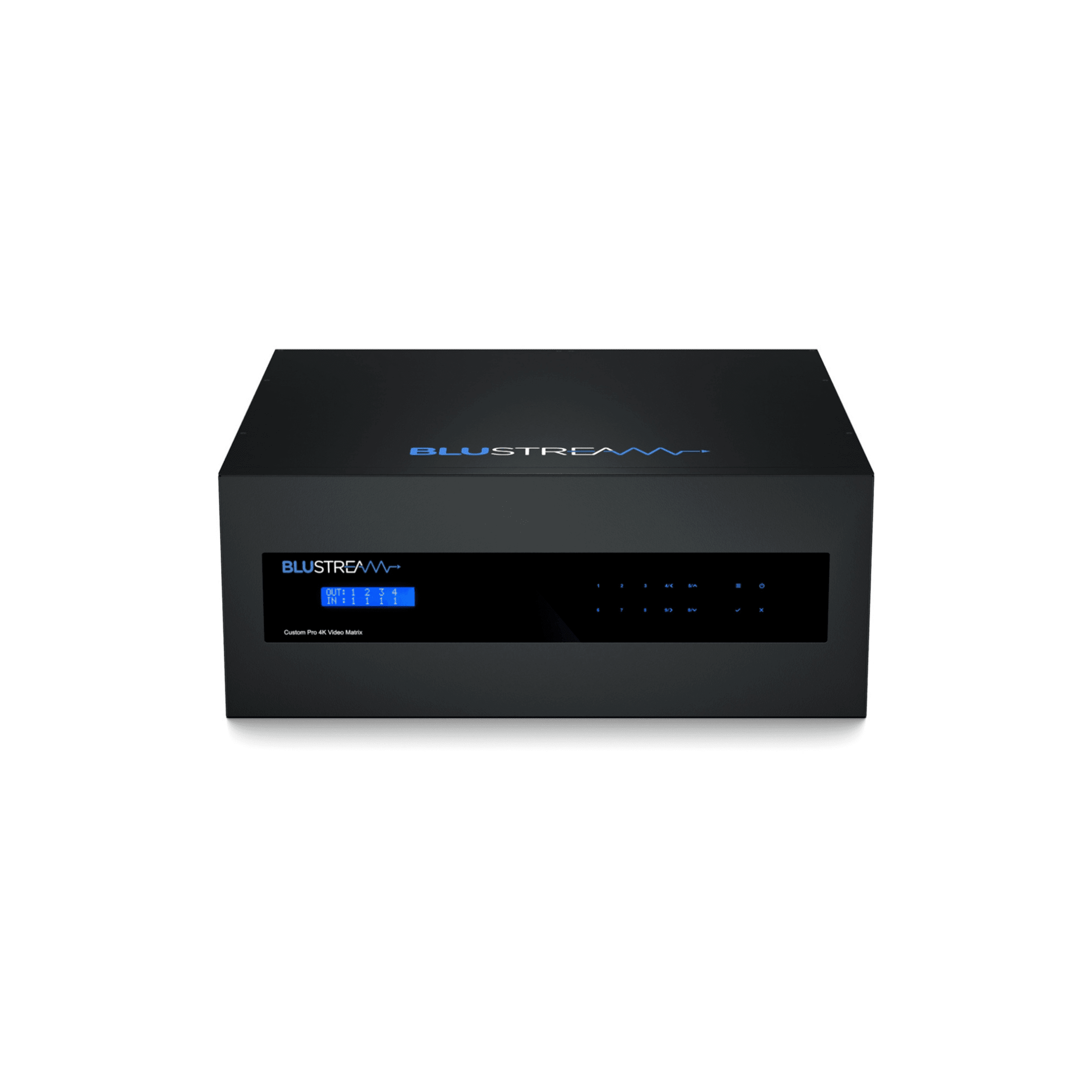

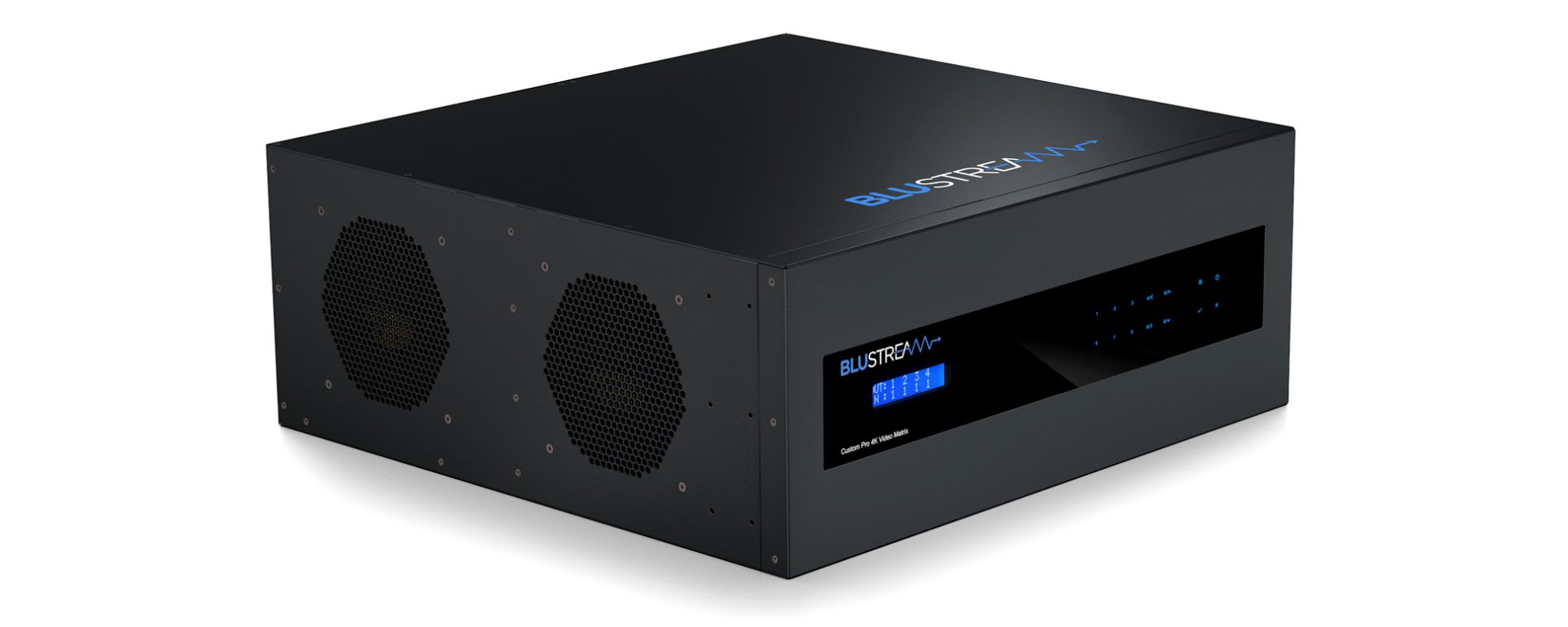

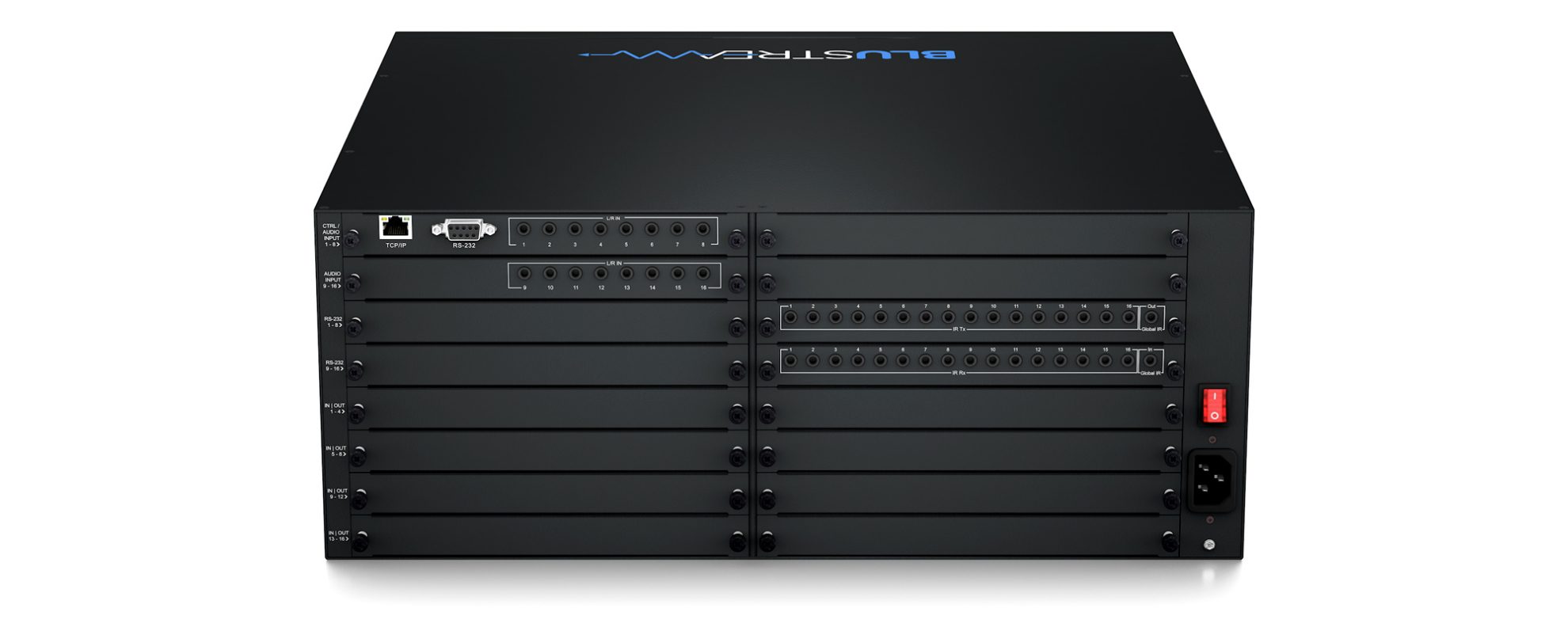

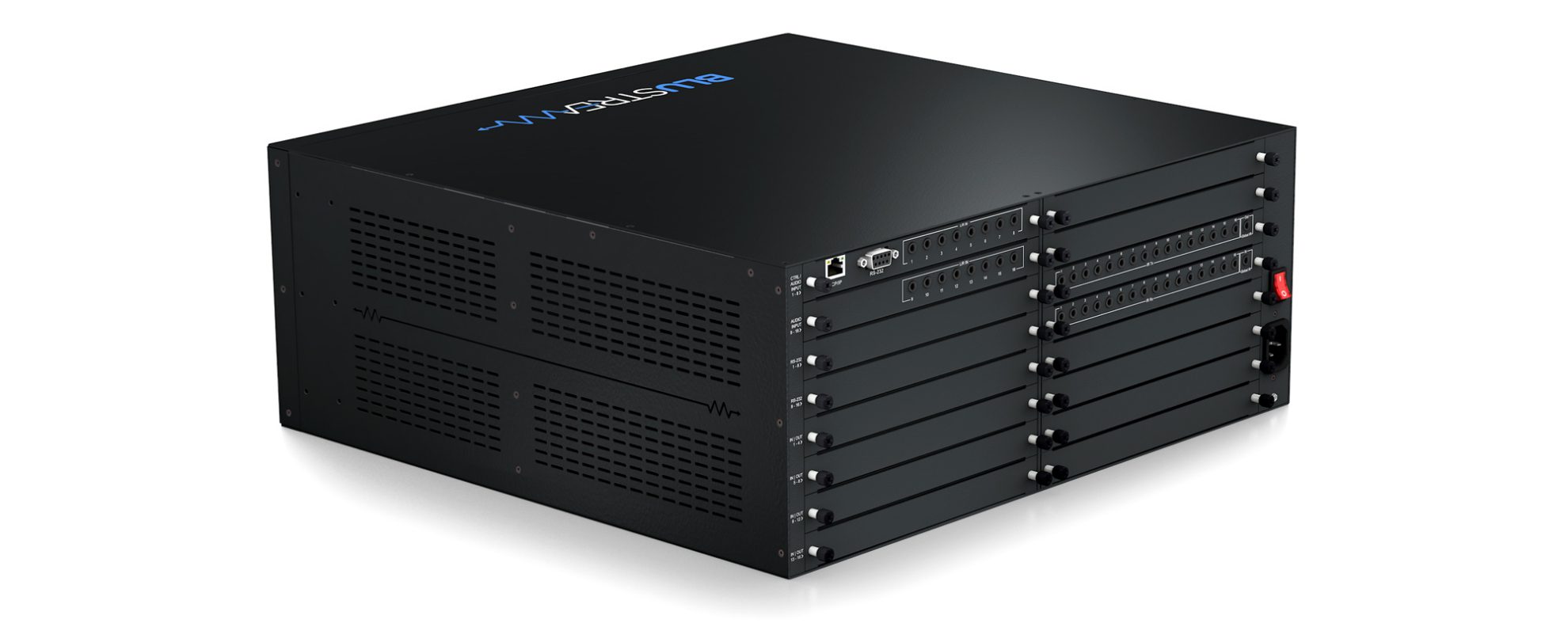

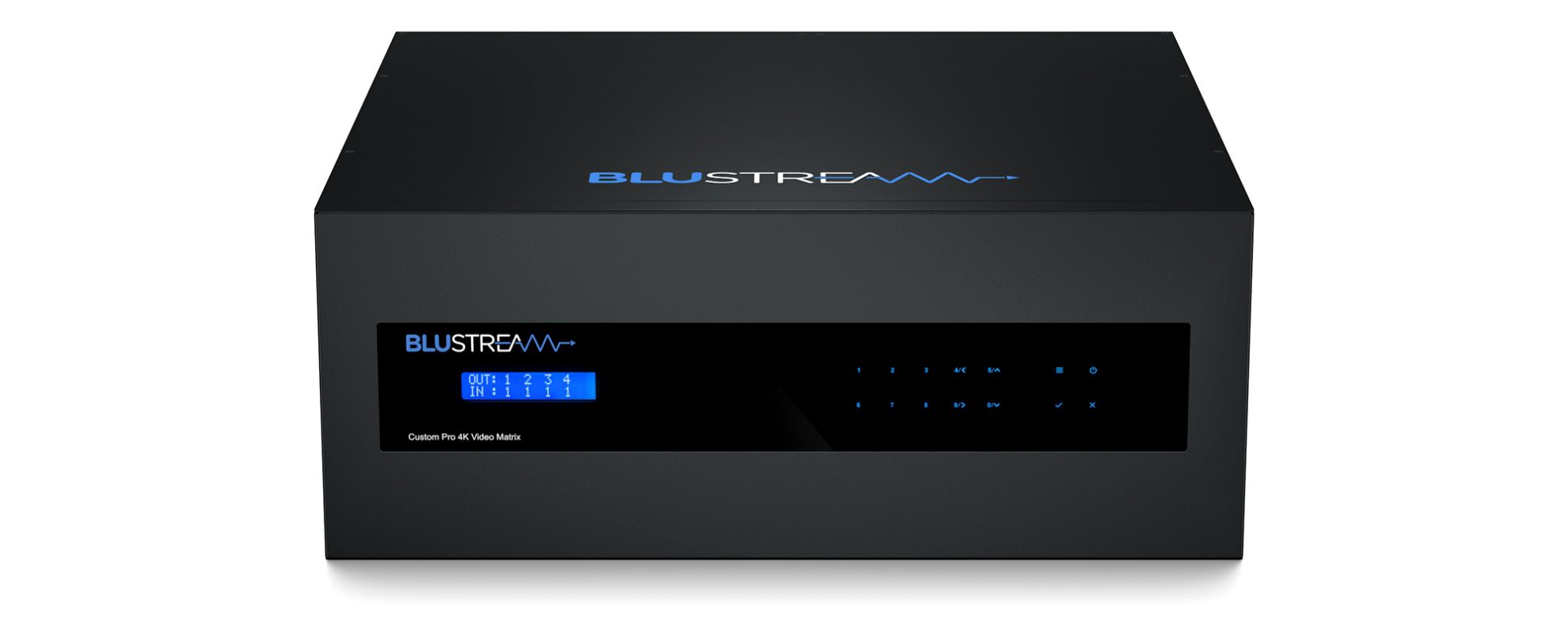

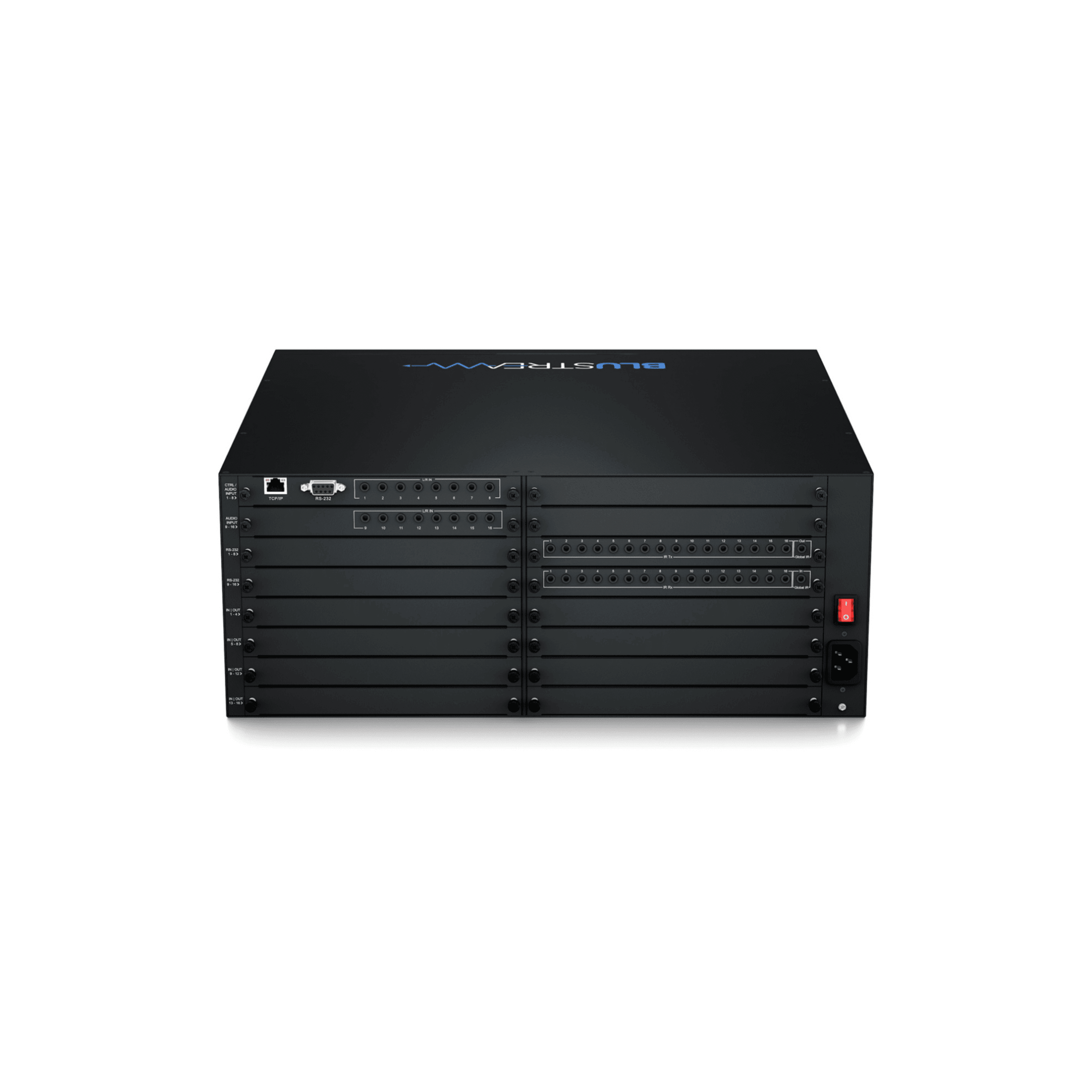

16×16 Custom Pro Matrix Hub – compatible with all signal boards and feature cards (IR cards included)
• Custom Pro Matrix with 12 x modular bays for population of input / output / control boards
• Supports up to 16x video inputs and 16x video outputs using a combination of 2-way and 4-way interchangeable input and output boards
• Supports 4K UHD video up to 4K 60Hz 4:4:4*
• Optional Colour Space Conversion (CSC) boards support HDMI 2.0 18Gbps specification including HDR over HDBaseT™
• Optional CSC boards feature independent downscaling of up to 4K 60Hz 4:4:4 video input to the following formats:
– 1080p @ 60Hz (for screens that do not support 4K)
– 4K 60Hz 4:2:0 (for screens that do not support full 18Gbps 4K 60Hz 4:4:4)
• 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• 16 x IR outputs for routed control of local source equipment
• 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ Receivers
• Optional RS-232 control board for bi-directional IR control with Blustream HDBaseT™ Receivers
• Optional Analogue and Digital Audio breakout board with line-level volume control
• Web browser interface for control and configuration of Matrix
• Control of Matrix via front panel, RS-232, TCP/IP, IR and Web GUI
• Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ Receivers
• 3rd Party drivers available for major control brands
• Advanced EDID management
• HDCP 2.2 compliant
*Full 4K 60Hz 4:4:4 support is subject to input / output boards specified
