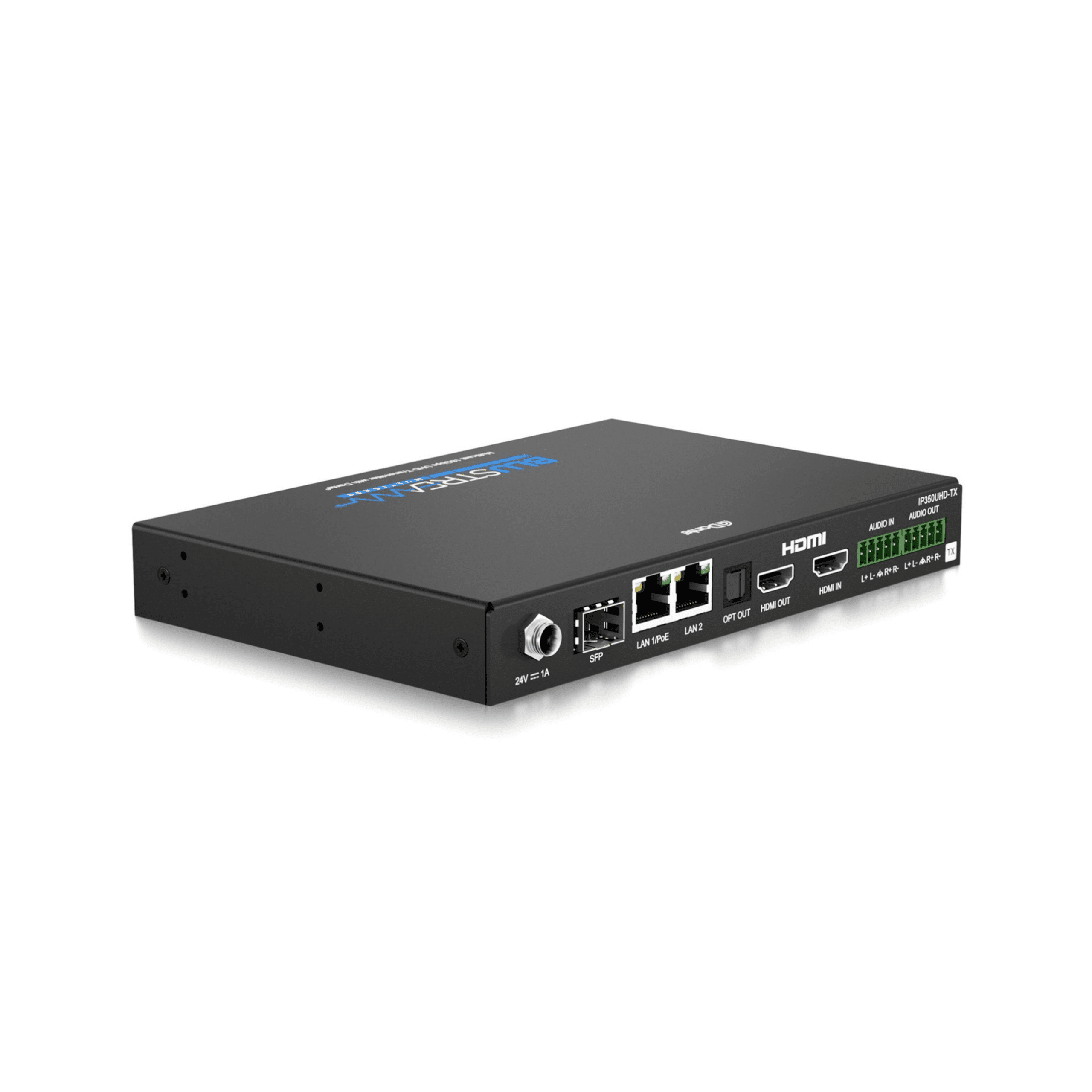

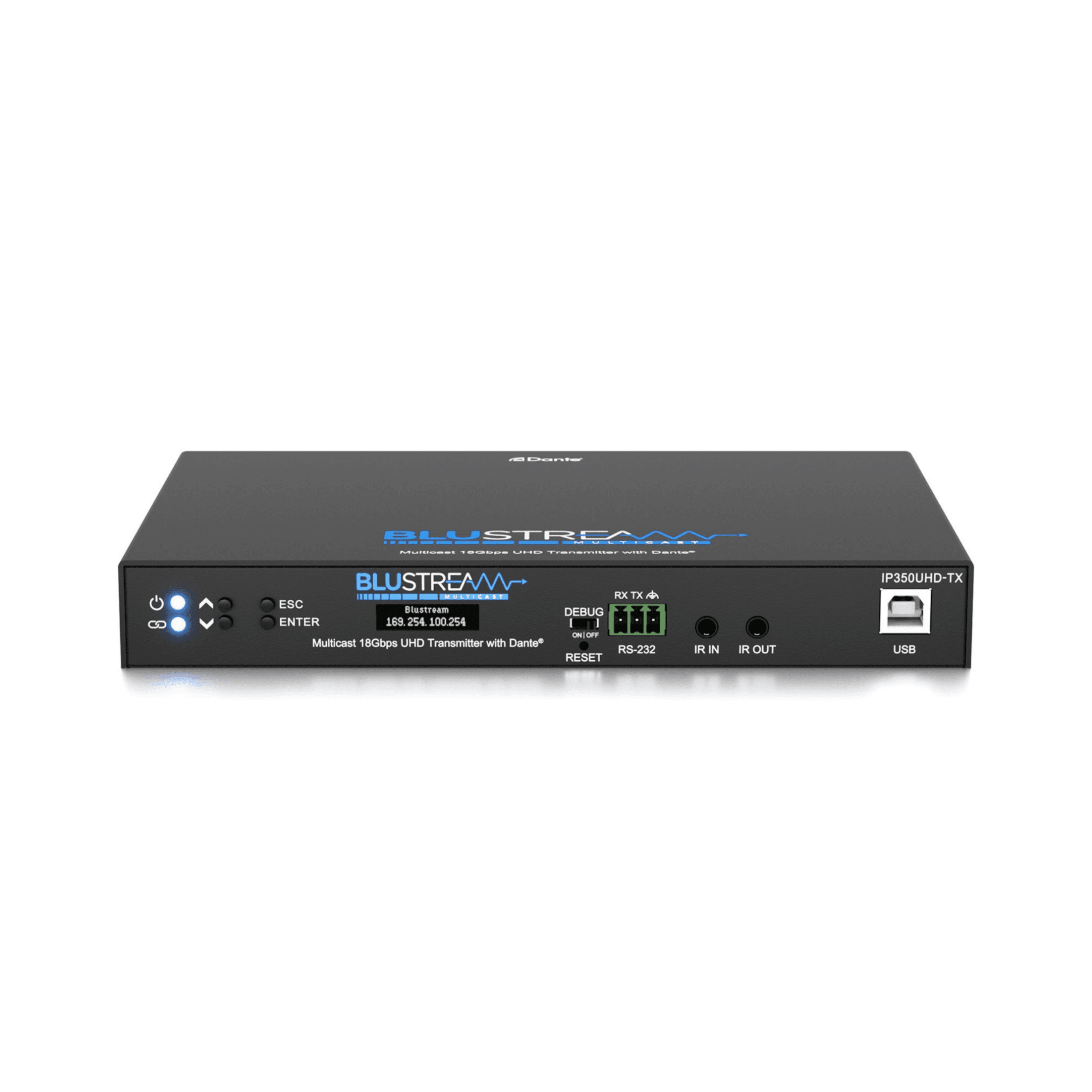

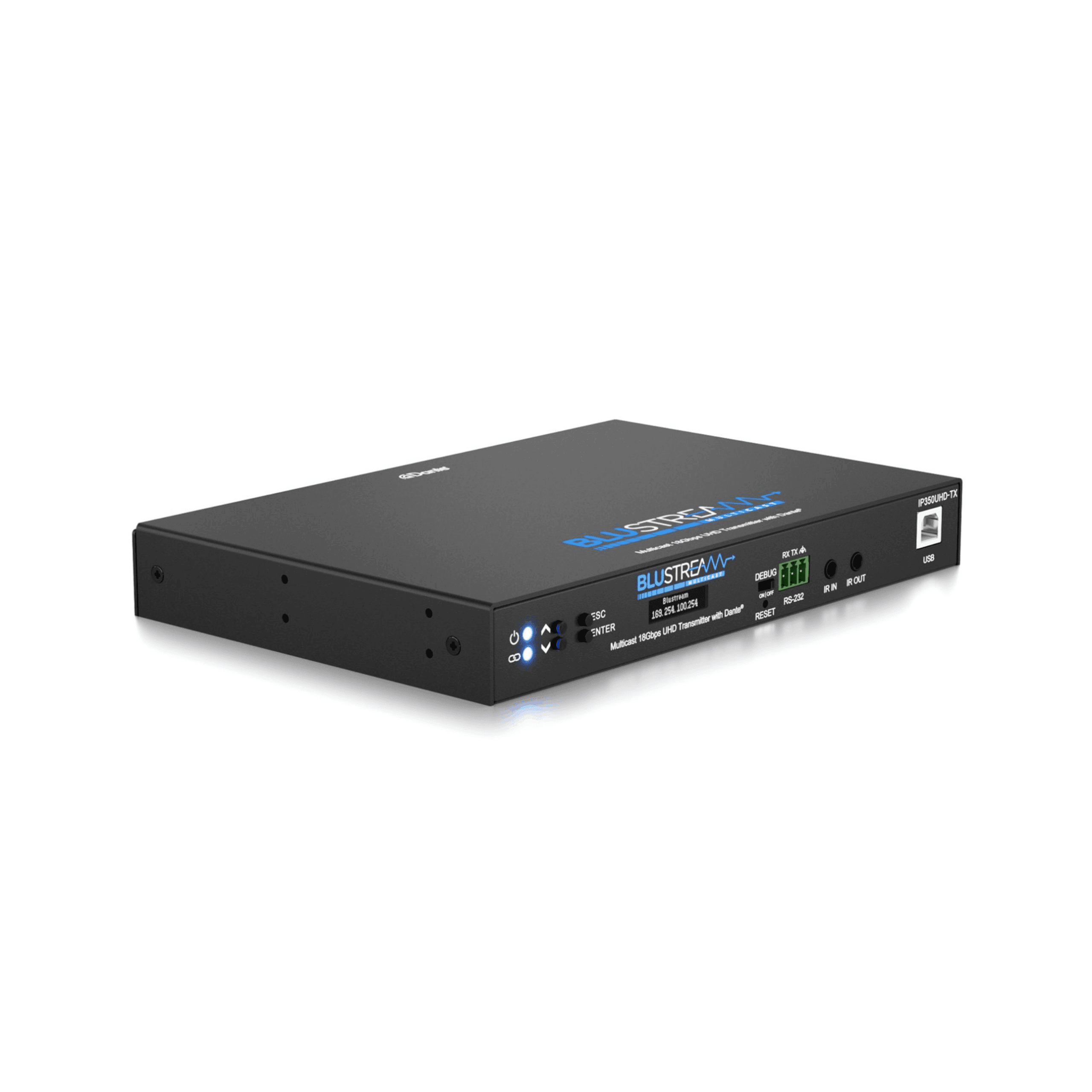

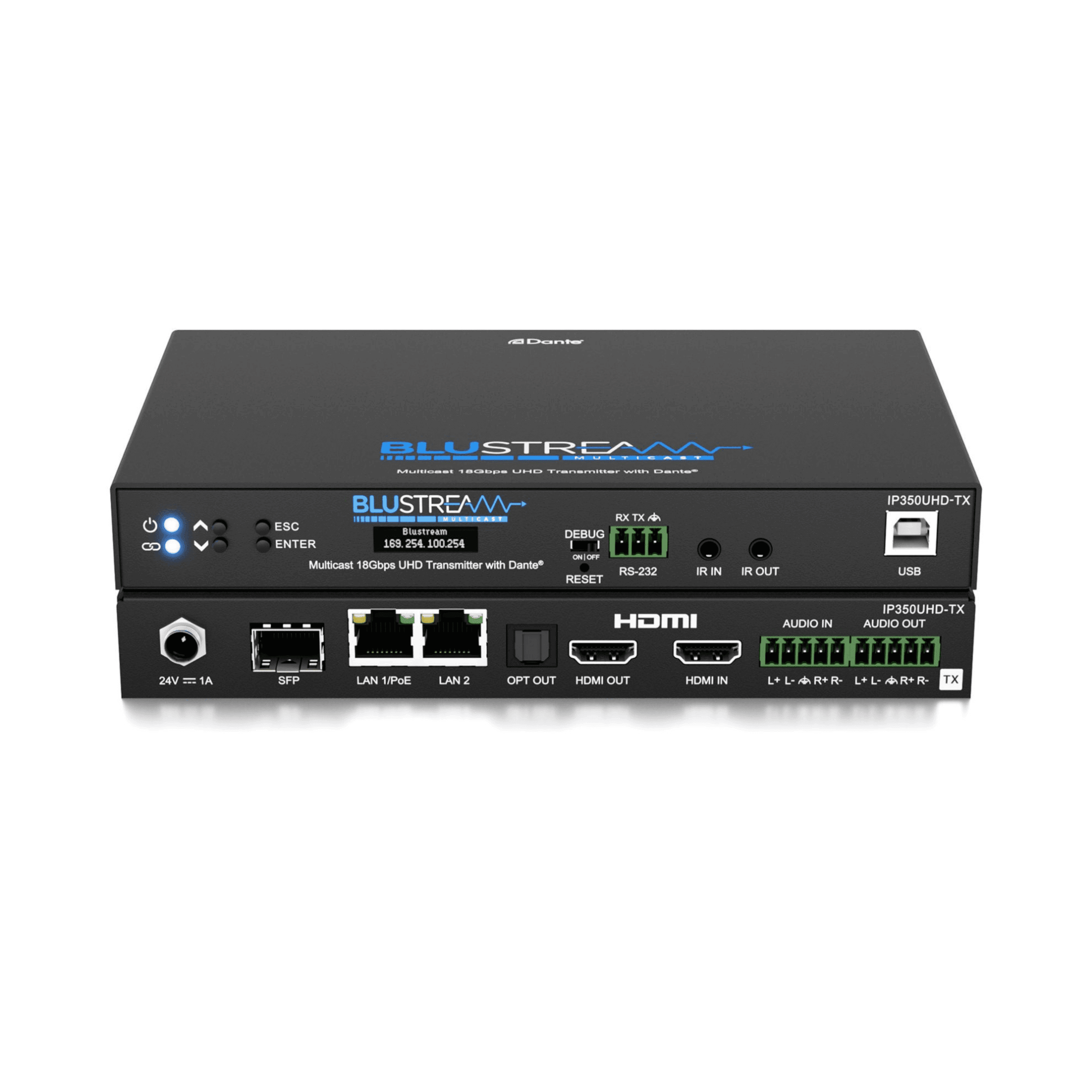

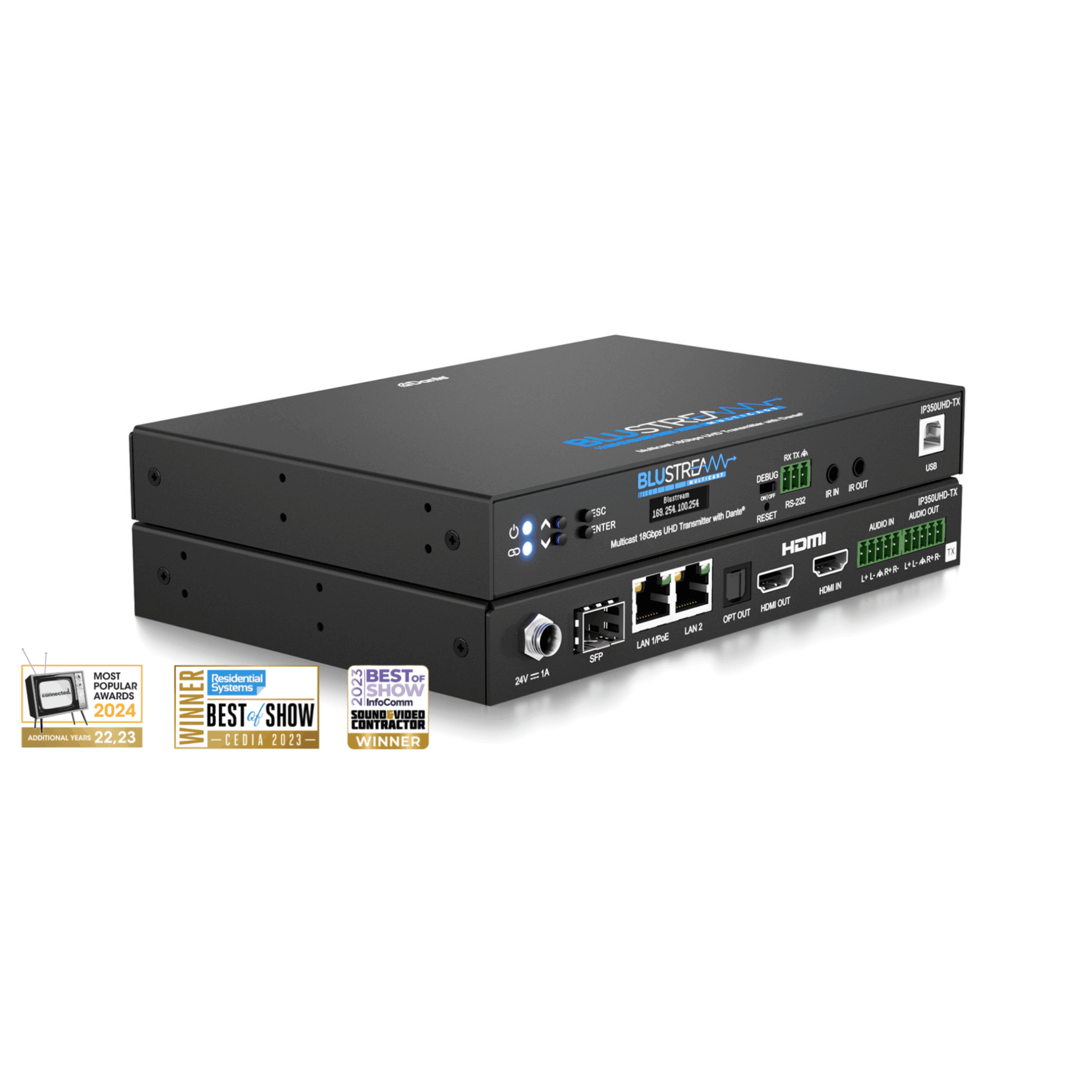

IP350UHD-TX
£699.00 + VAT
The Blustream IP300UHD-TX video over IP distribution platform enables virtually latency free one frame distribution of 4K 18Gbps HDMI video over a 1Gb managed network. Fully interoperable with the IP300UHD product line, the IP350UHD-TX is a Dante enabled 4K HDCP 2.2 HDMI transmitter that uses visually lossless compression to deliver 18Gbps HDMI video, embedded audio, ARC eARC and optical audio return, Dante and AES67 audio, along with bi directional IR, RS 232 and USB KVM over distances of up to 100 metres using standard copper networking or over longer distances via the integrated fibre SFP interface. The IP350UHD-TX supports both video and Dante audio distribution on a single network, while a second RJ45 connection allows the Dante audio network to be separated from the video over IP network for larger systems or independently managed infrastructures. Power can be supplied via PoE from a compatible network switch or locally where PoE is not available, and with multiple configuration options the flexibility of this video over IP platform makes it suitable for a wide range of commercial and residential installation types.
18Gbps UHD Video Transmitter over 1Gb Network , HDMI Loop-out, 2ch Dante Audio Transmitter/Receiver, Dual RJ45 & SFP Network Ports, Bi-directional IR, RS-232 & USB/KVM, PoE, Analogue Audio Embedding, Analogue Audio Breakout and HDCP 2.2
• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m / 328ft over a single CAT cable
• SFP port for long-distance signal distribution over fibre
• HDMI loop-out for integrating local displays or cascading to multiple devices
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR
• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
• SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
• In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
• In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
• HDMI ARC, eARC or optical audio return from a display connected to an IP300UHD or IP350UHD receiver
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• PoE (Power over Ethernet) to power Blustream unit from PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Balanced/unbalanced analogue L/R audio embedding
• Audio breakout to analogue L/R audio, supporting both balanced and unbalanced audio signals
• OLED front panel display for advanced system information and manual configuration
• Optional 24V power supply (should Ethernet switch not support PoE)
• Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX products
• IP300UHD/IP350UHD platform features 4 operational modes:
– Matrix distribution (requires 1Gb network switch)
– Video wall (requires 1Gb network switch)
– One-to-one HDMI extender (no network switch required)
– One-to-many HDMI extender (no network switch required)
1 x IP350UHD-TX
1 x IRR Receiver
1 x IRE1 Emitter
2 x Audio 5-pin Phoenix Connector
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit
Want to know more about this solution? Contact our friendly and specialist sales team today.
