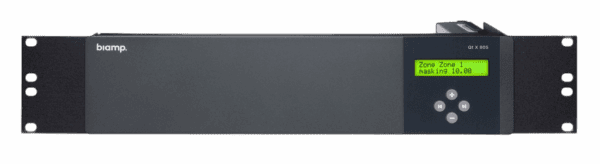

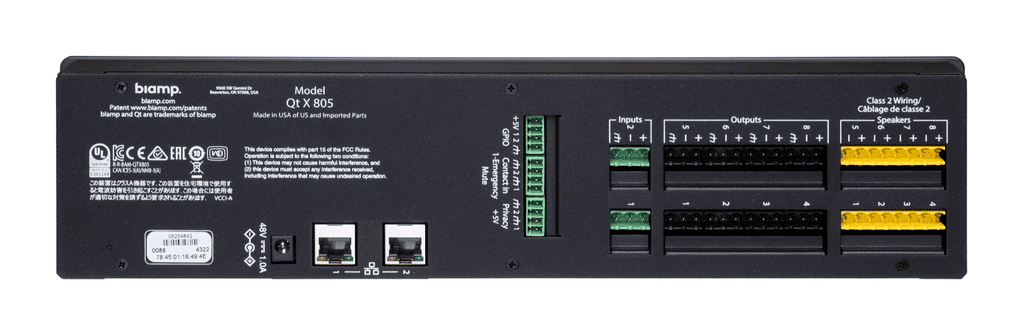

Biamp Cambridge Qt X 805D Control Module

Biamp Cambridge Qt X 805D Control Module

The Cambridge Qt™ X 805/805D control module is a sound masking generator, controller, third octave band equaliser and amplifier, with two auxiliary audio inputs allowing for distribution of audio from paging controllers and/or (background) music players.

The Qt X 805/805D control module controls sound masking speakers/ emitters in both direct-field and indirect installations or a mix of both.

Each of the eight amplified output speakers/emitters can be independently adjusted for masking and aux audio levels and spectra.

When multiple Qt X controllers are included in a single system, audio inputs can be shared across all controllers via AVB or Dante (805/D).

Key Features

• Utilises indirect 4Ω and 8Ω speakers (ex. DS1357 & DS1398) and/or direct active emitters (DS1320) DynasoundPro™ loudspeakers and emitters
• Supports up to eight zones of amplified speakers matched with eight zones of pre-amp outputs
• Eight included non-correlated sound masking audio sources (one for each output)
• AVB or Dante media network
• Two audio inputs for paging and music
• Contact closure integrates with fire alarm systems
• Front panel with LCD
• Panel lock via software control
• Rack mount bracket included, optional wall mount bracket also available
• Auto ramping
• Event scheduling
• Adjustable equalizer for masking and audio inputs
• Met Works with WELL licensing criteria for sound masking.
• 5-year warranty
