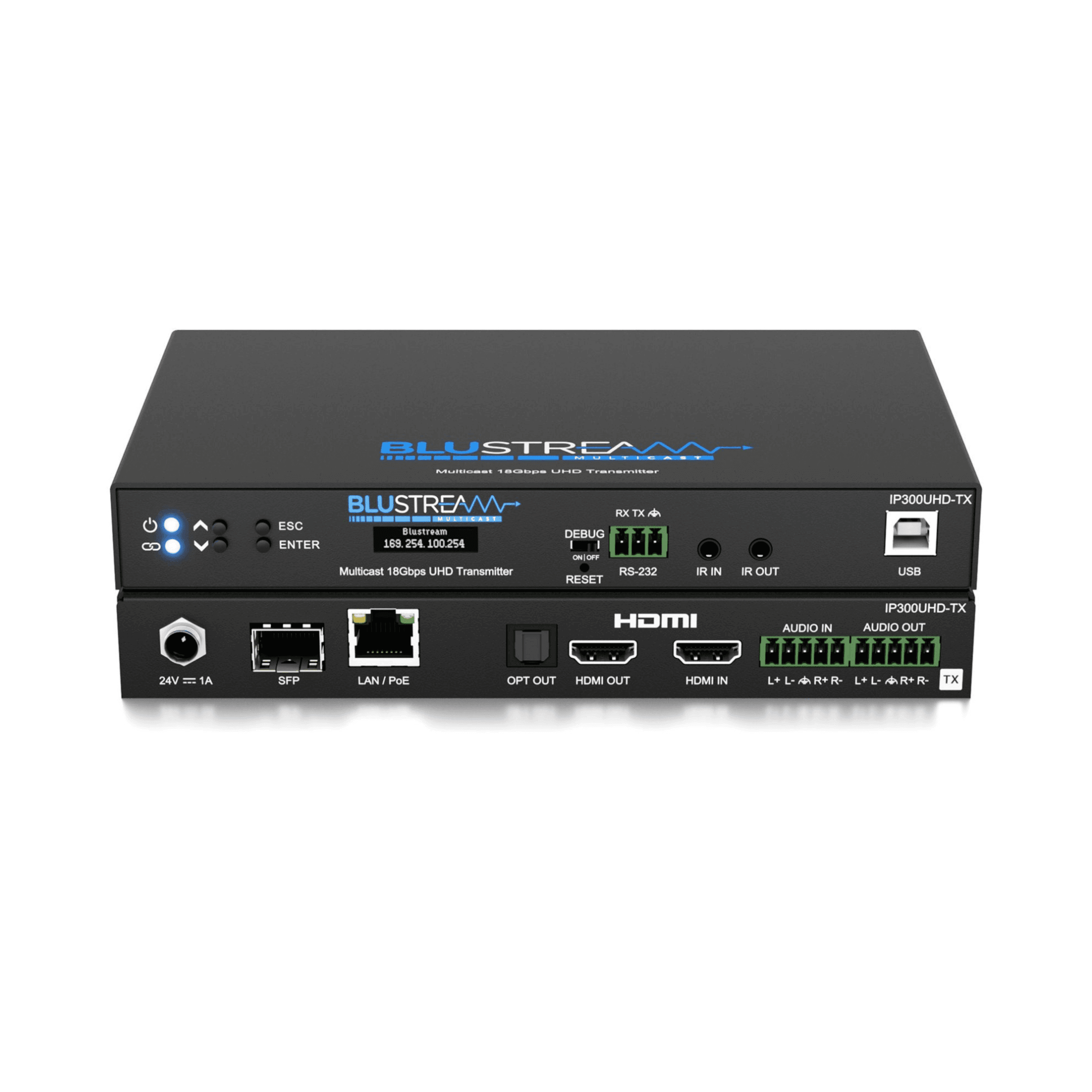

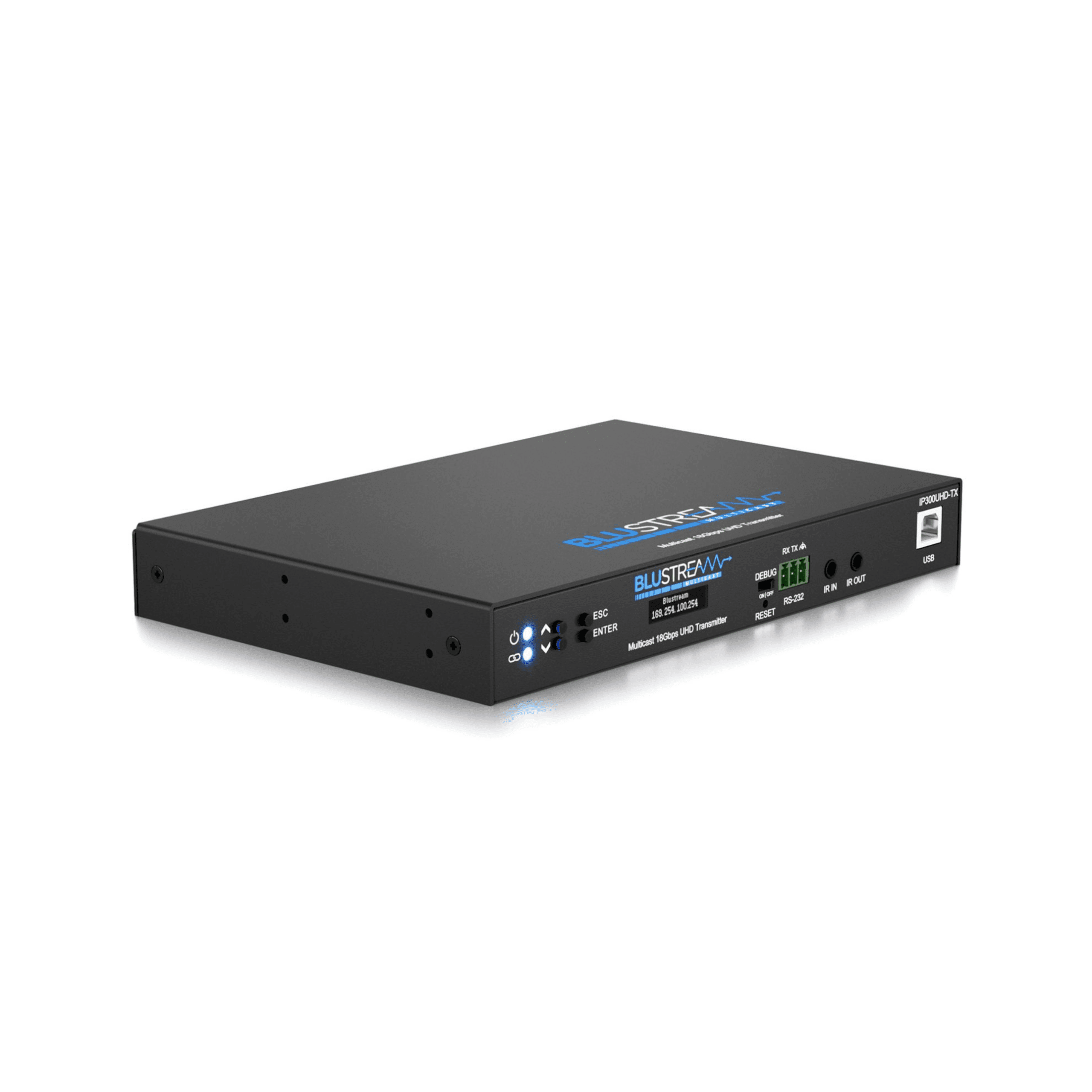

IP300UHD-TX
£549.00 + VAT
The Blustream IP300UHD series video over IP distribution platform enables virtually latency free one frame distribution of 4K 18Gbps HDMI video over a 1Gb managed network. Fully interoperable with the IP350UHD product line where Dante functionality may be required, the IP300UHD-TX is a 4K HDCP 2.2 HDMI transmitter that uses visually lossless compression to deliver 18Gbps HDMI video, embedded audio, ARC eARC and optical audio return, along with bi directional IR, RS 232 and USB KVM over distances of up to 100 metres using standard copper network infrastructure or over longer distances via the integrated fibre SFP interface. The unit can be powered via PoE from a compatible network switch or locally if PoE is not available, and with multiple configuration options the flexibility of this video over IP platform makes it suitable for a wide range of commercial and residential installation types.

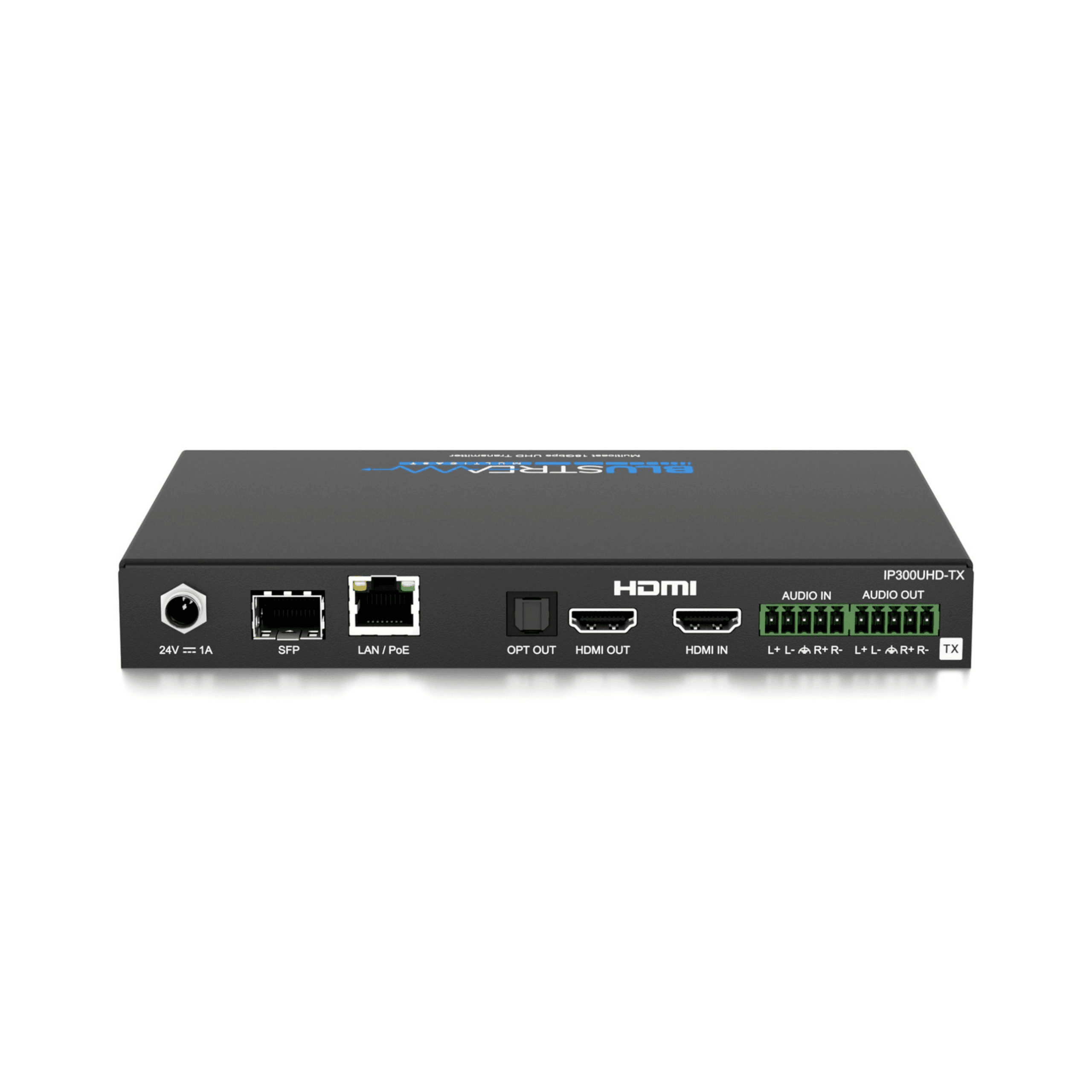

18Gbps UHD Video Transmitter over 1Gb Network , HDMI Loop-out, RJ45 & SFP Network Ports, Bi-directional IR, RS-232 & USB/KVM, PoE, Analogue Audio Embedding, Analogue Audio Breakout and HDCP 2.2
• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m / 328ft over a single CAT cable
• SFP port for long-distance signal distribution over fibre
• 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• PoE (Power over Ethernet) to power Blustream unit from PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Audio breakout to analogue L/R audio, supporting both balanced and unbalanced audio signals
• Balanced/unbalanced analogue audio input for replacing the HDMI embedded audio with a different audio signal
• HDMI ARC, eARC or optical audio return from a display connected to an IP300UHD or IP350UHD receiver

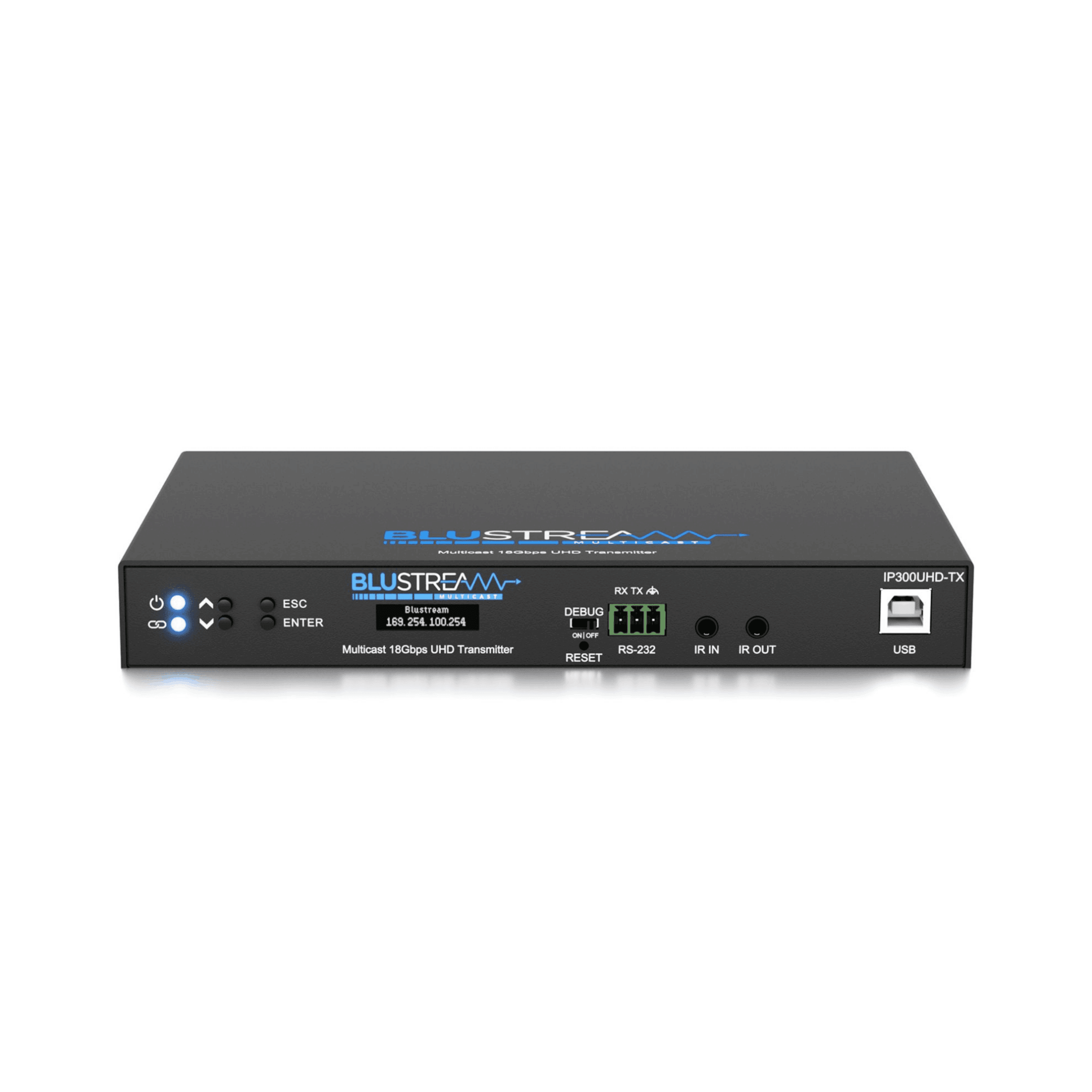

• OLED front panel display for advanced system information and manual configuration
• Optional 24V power supply (should Ethernet switch not support PoE)
• Compatible with Blustream IP300UHD-RX and IP350UHD-RX products
• IP300UHD/IP350UHD platform features 4 operational modes:
– Matrix distribution (requires 1Gb network switch)
– Video wall (requires 1Gb network switch)
– One-to-one HDMI extender (no network switch required)
– One-to-many HDMI extender (no network switch required)
1 x IP300UHD-TX
1 x IRR Receiver
1 x IRE1 Emitter
2 x Audio 5-pin Phoenix Connector
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit
Want to know more about this solution? Contact our friendly and specialist sales team today.
