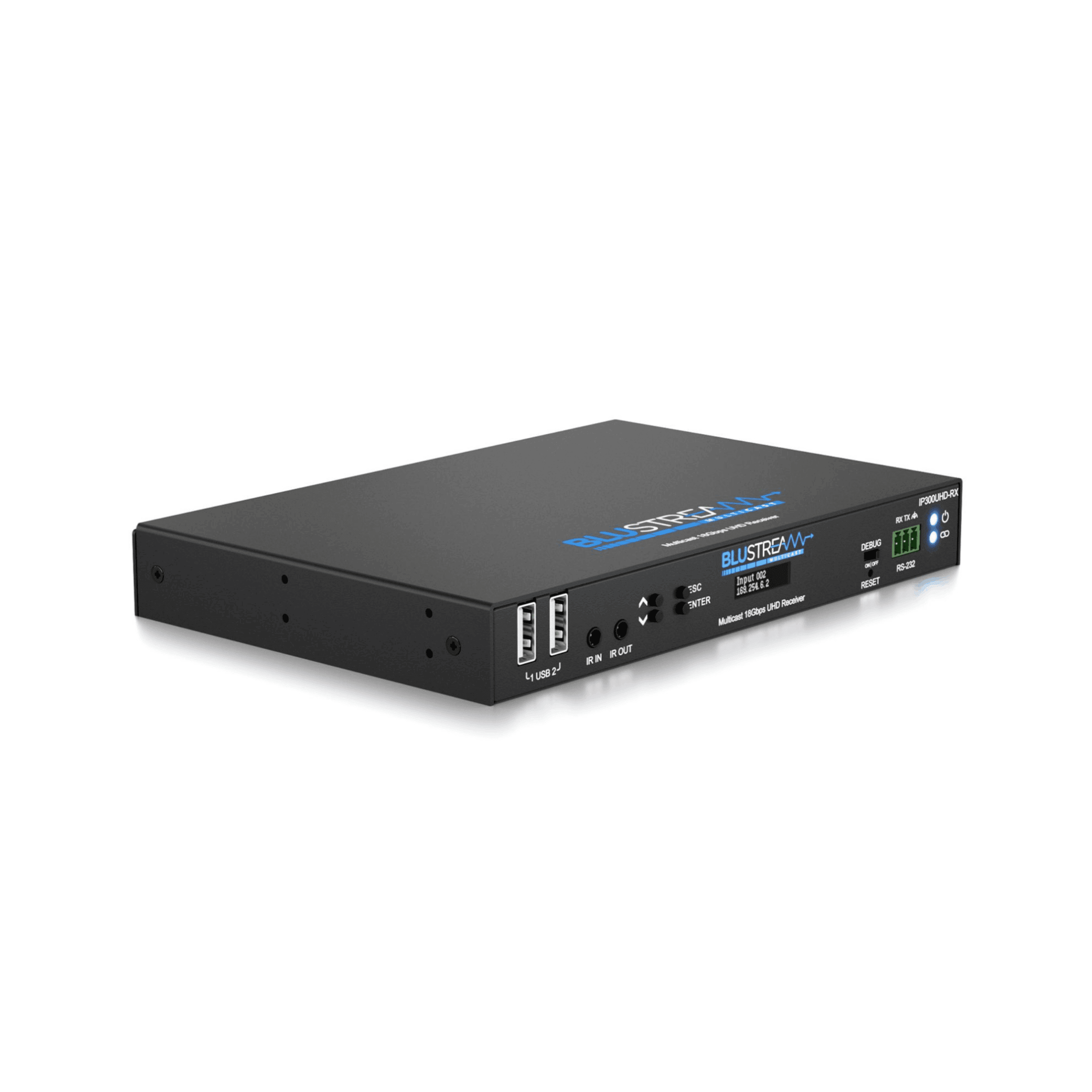

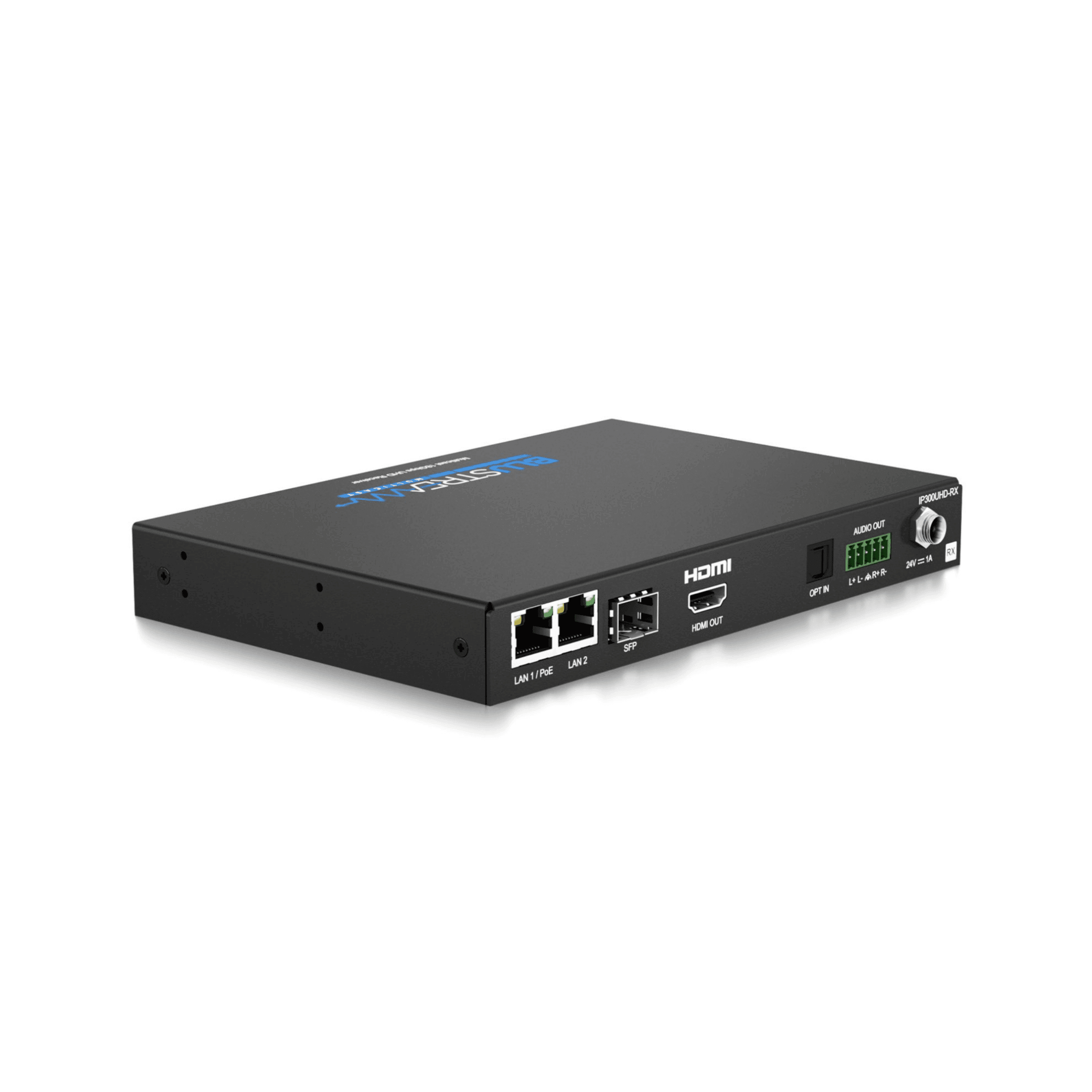

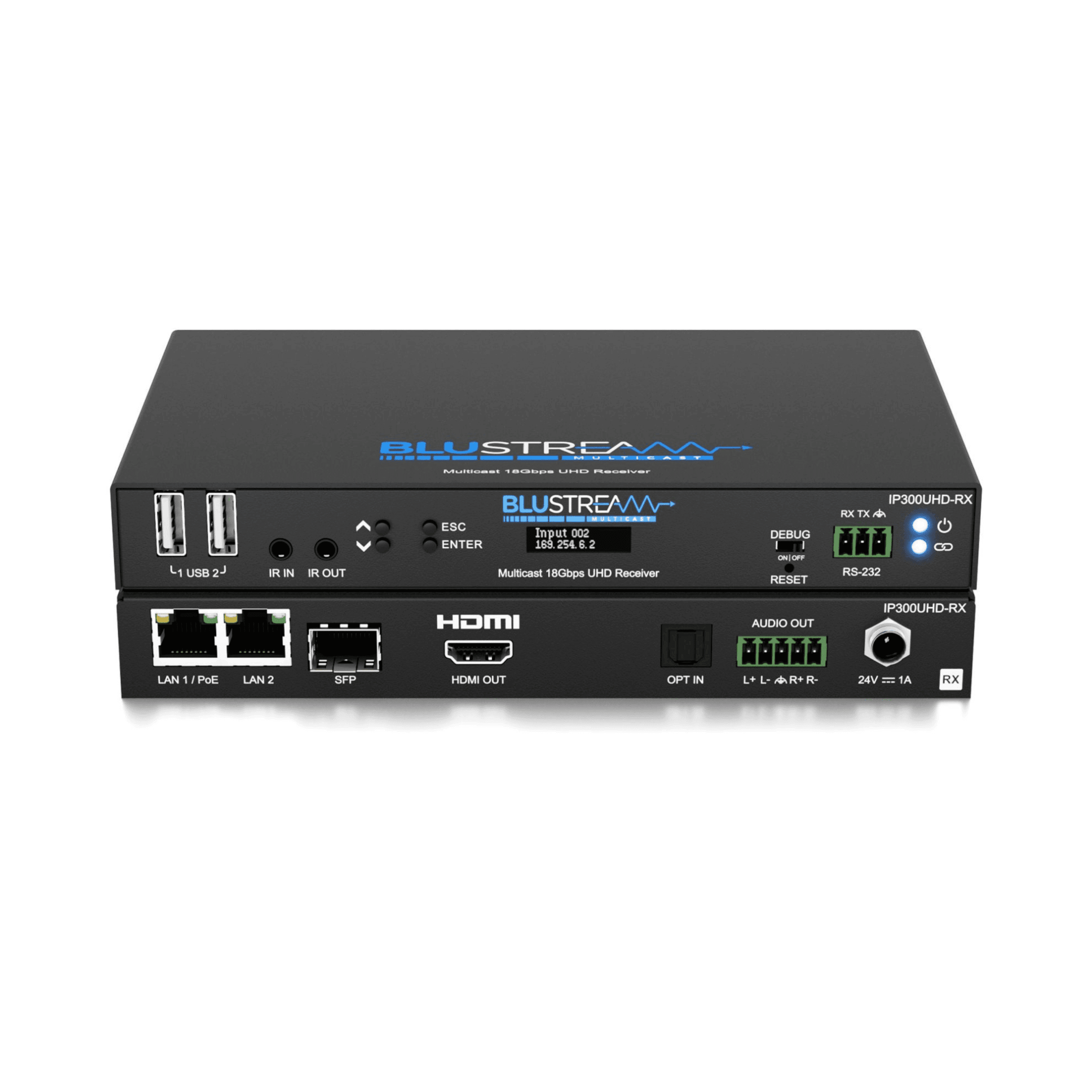

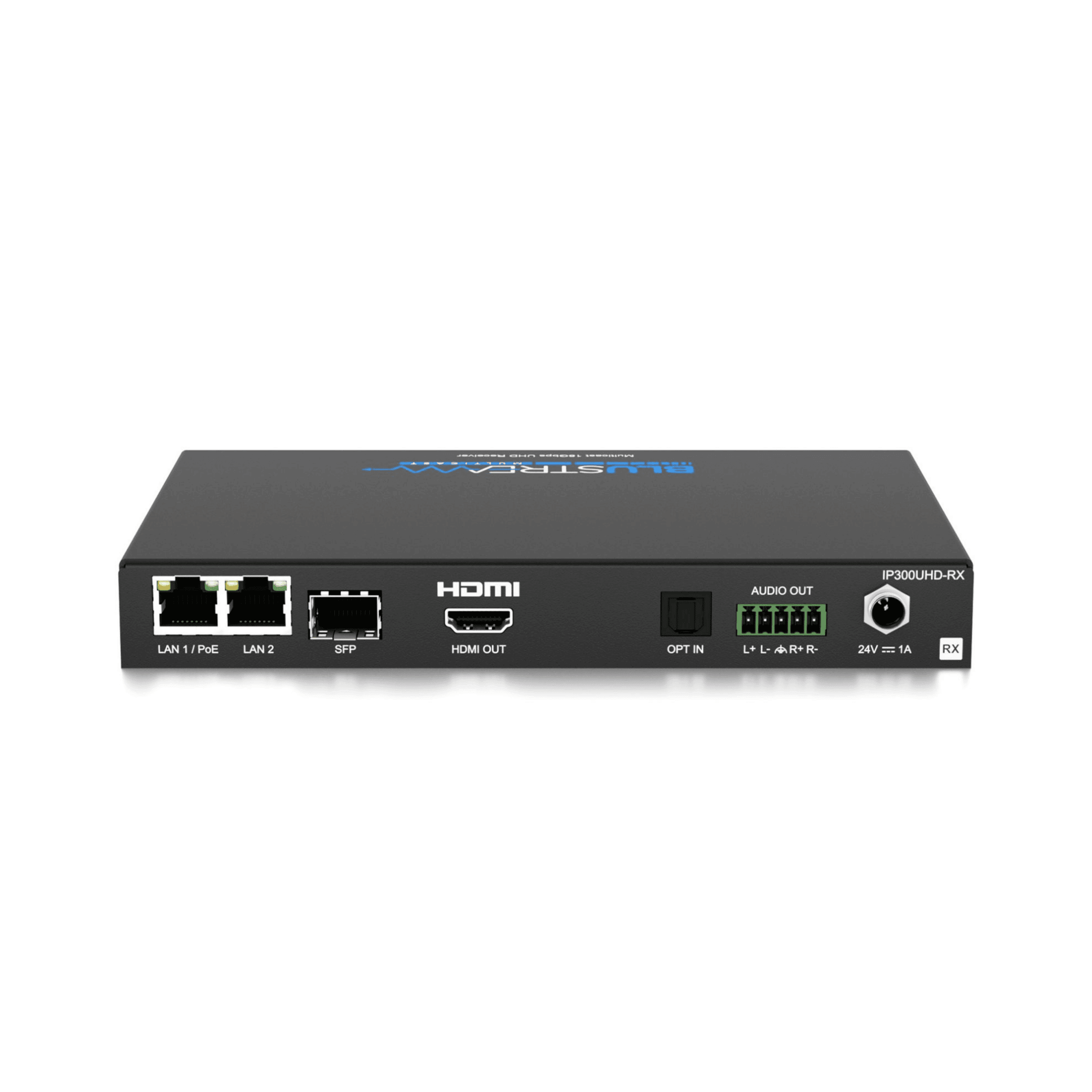

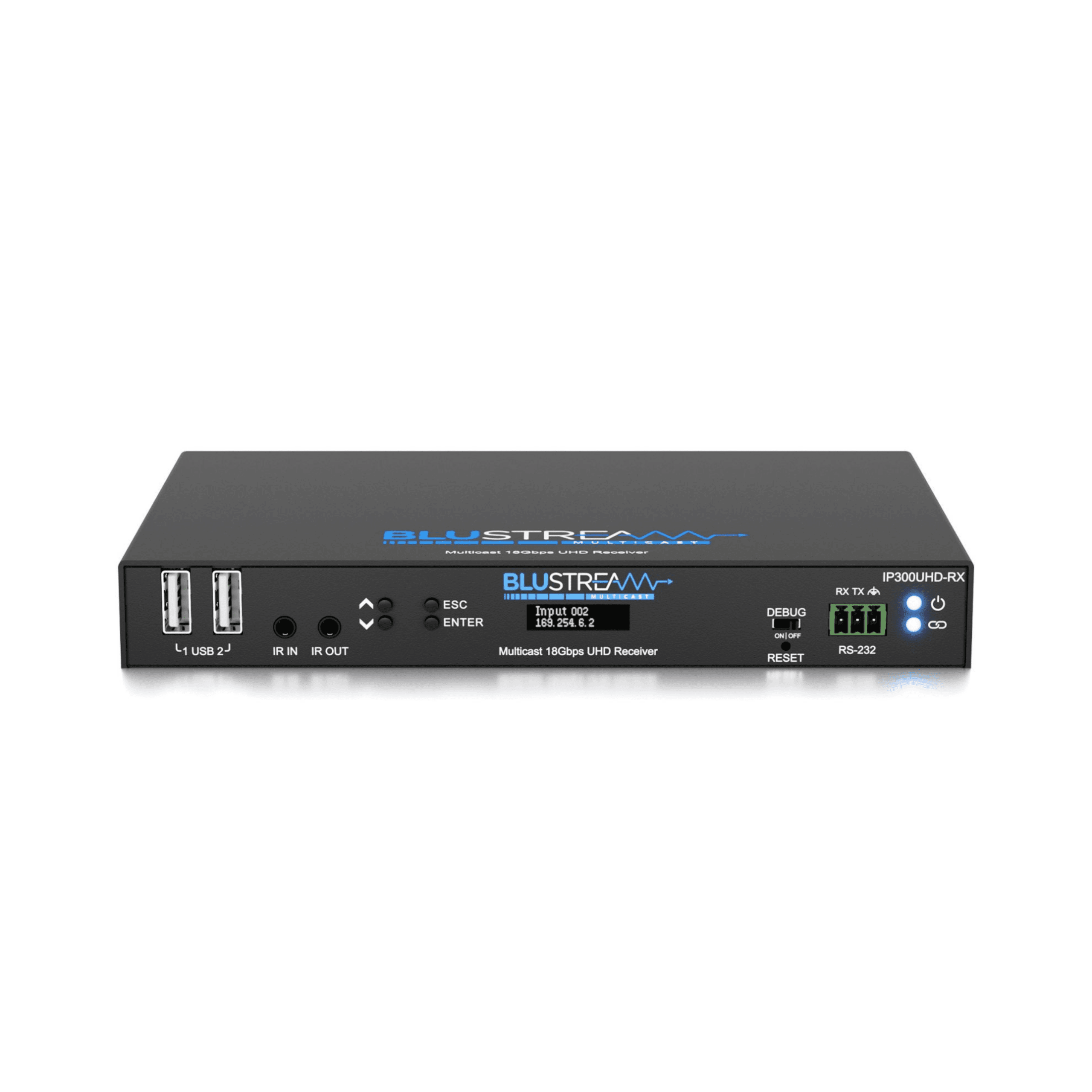

IP300UHD-RX
£569.00 + VAT
The Blustream IP300UHD series video over IP distribution platform enables virtually latency free one frame distribution of 4K 18Gbps HDMI video over a 1Gb managed network. Fully interoperable with the IP350UHD product line where Dante functionality may be required, the IP300UHD-RX is a 4K HDCP 2.2 HDMI receiver that uses visually lossless compression to deliver 18Gbps HDMI video, embedded audio, ARC eARC and optical audio return, along with bi directional IR, RS 232 and USB KVM over distances of up to 100 metres on standard copper networks or over longer distances via the integrated fibre SFP interface. The IP300UHD-RX includes a second RJ45 LAN port to allow daisy chaining of the HDMI signal to additional IP300UHD-RX units, and features a full 18Gbps HDMI scaling chipset that enables output resolution adjustment for legacy displays while also supporting video wall creation. Power can be supplied via PoE from a compatible network switch or locally if PoE is not available, and with multiple configuration options the flexibility of this video over IP platform makes it suitable for a wide range of commercial and residential installation types.
18Gbps UHD Video Receiver over 1Gb Network, Built-in Video Scaler, Video-wall mode, RJ45 & SFP Network Ports, Bi-directional IR, RS-232 & USB/KVM, PoE, Analogue Audio Breakout and HDCP 2.2
• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m / 328ft over a single CAT cable
• SFP port for long-distance signal distribution over fibre
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• PoE (Power over Ethernet) to power Blustream unit from PoE switch
• HDCP 2.2 compliant with full 18Gbps scaling capabilities for inclusion of non-4K / legacy displays whilst distributing 4K to other parts of the system
• Analogue L/R audio output support both balanced and unbalanced audio signals
• HDMI ARC, eARC or optical audio return from display to an IP300UHD or IP350UHD transmitter
• LAN loop-out for one-to-many extender mode
• OLED front panel display for advanced system information and manual configuration
• Optional 24V power supply (should Ethernet switch not support PoE)
• Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX products
• Features 4 operational modes:
– Matrix distribution (requires 1Gb network switch)
– Video wall (requires 1Gb network switch)
– One-to-one HDMI extender (no network switch required)
– One-to-many HDMI extender (no network switch required)
1 x IP300UHD-RX
1 x IRR Receiver
1 x IRE1 Emitter
1 x Audio 5-pin Phoenix Connector
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit
