PRO-OUT2TL-V2
£319.00 + VAT

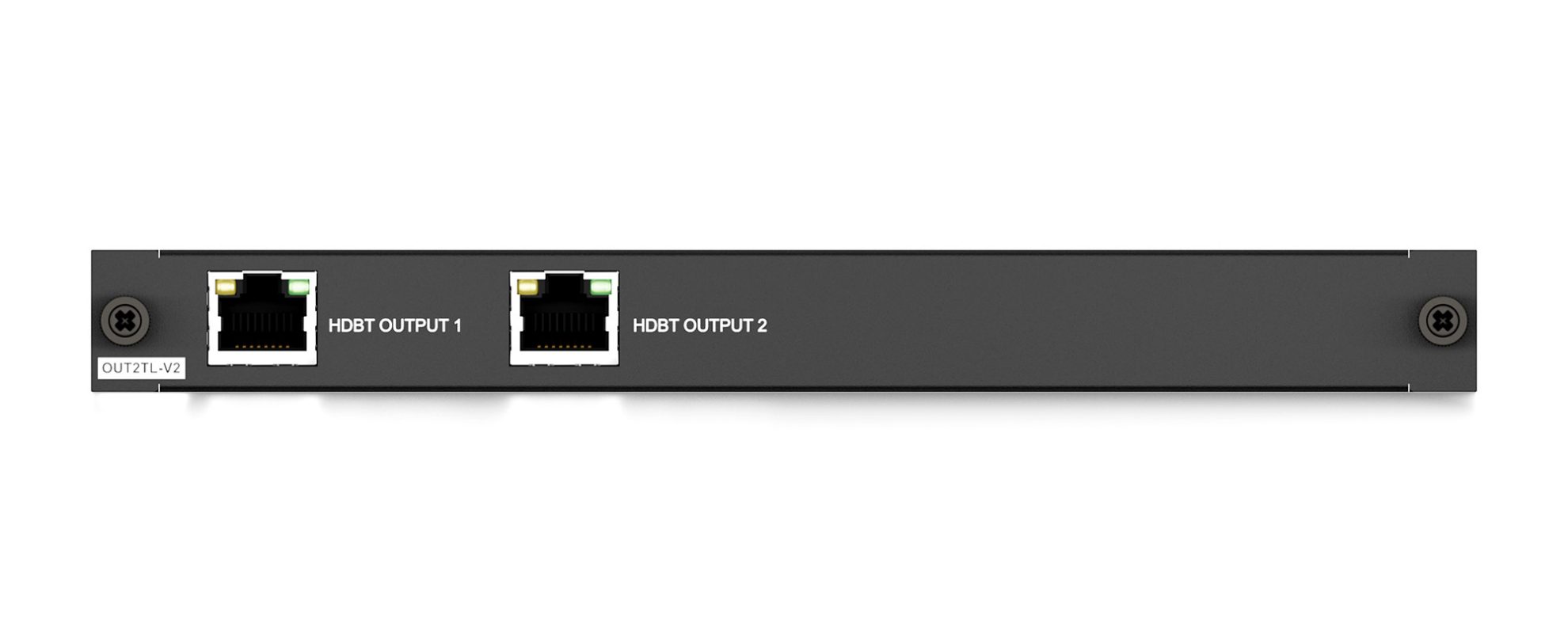

The PRO-OUT2TL-V2 output board provides two independent HDBaseT™ outputs utilising CSC technology, supporting HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) and HDCP 2.2 signal distribution over distances of up to 40m (or up to 70m at 1080p). The PRO-OUT2TL-V2 offers independent downscaling of 4K video inputs on its CSC HDBaseT™ outputs, enabling displays with lower resolution capability to receive 4K content, whilst higher-definition screens continue to display full 4K UHD quality. It also includes quick-release card module fittings, ensuring straightforward installation into the Custom Pro Matrix hub.
2-Way HDBaseT™ Output Board – 4K 60Hz 4:4:4 to 40m (1080p up to 70m)
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Features 2 x HDBaseT™ outputs for connection to compatible HDBaseT™ receivers
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
• Supports 4K 60Hz 4:4:4 UHD video up to 40m*
• Independent down-scaling of video input resolutions up to 4K 60Hz 4:4:4 to the following formats:
– 1080p 60Hz (for screens that do not support 4K)
– 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
• Extends HDMI 1080p video up to 70m
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Supports PoC to power Blustream HDBaseT™ receivers
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
• HDCP 2.2 Support
• To be used with the HEX70CS-RX receivers
*For HDMI 2.0 18Gbps video distribution the PRO-OUT2TL-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board
