IP200UHD-TX
£399.00 + VAT

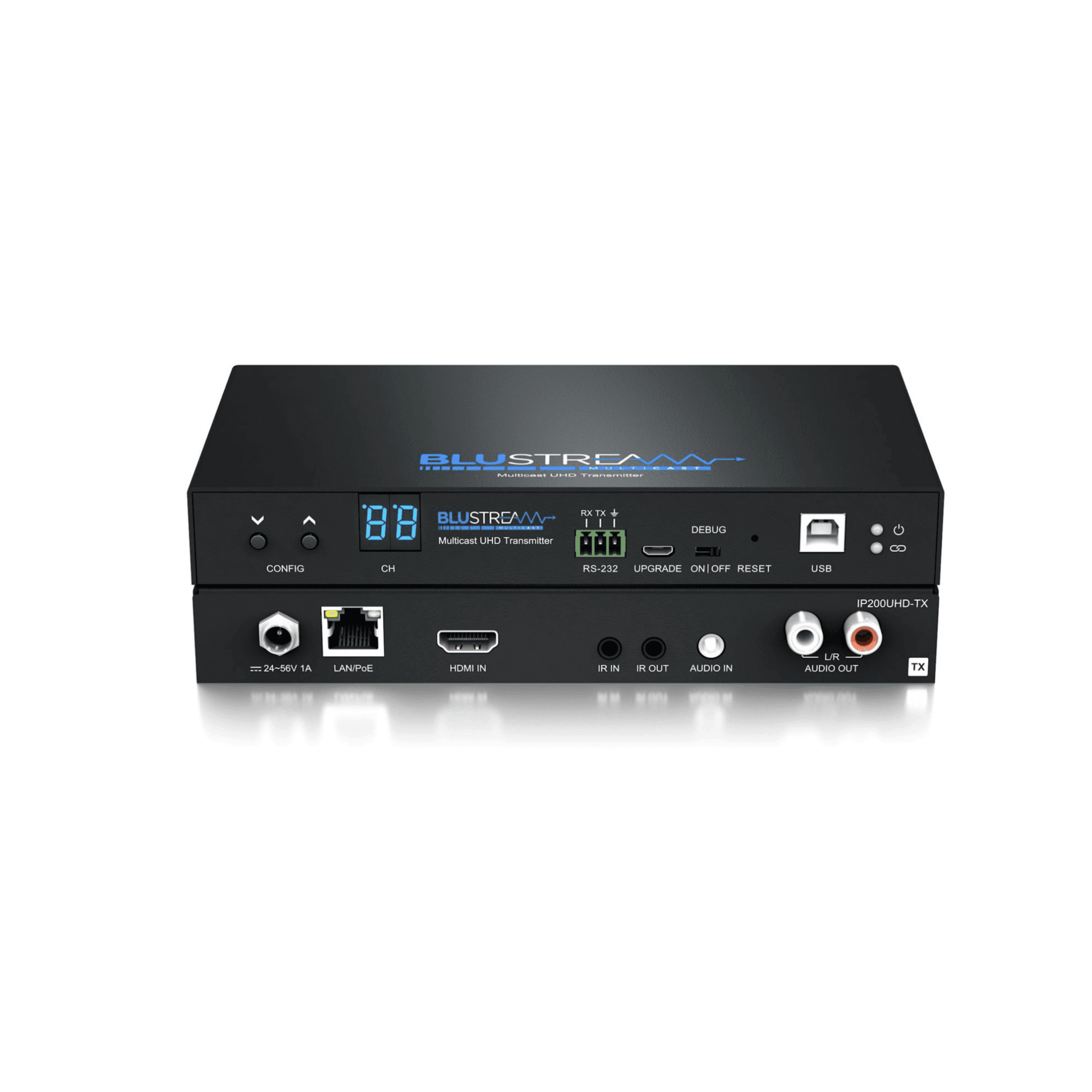

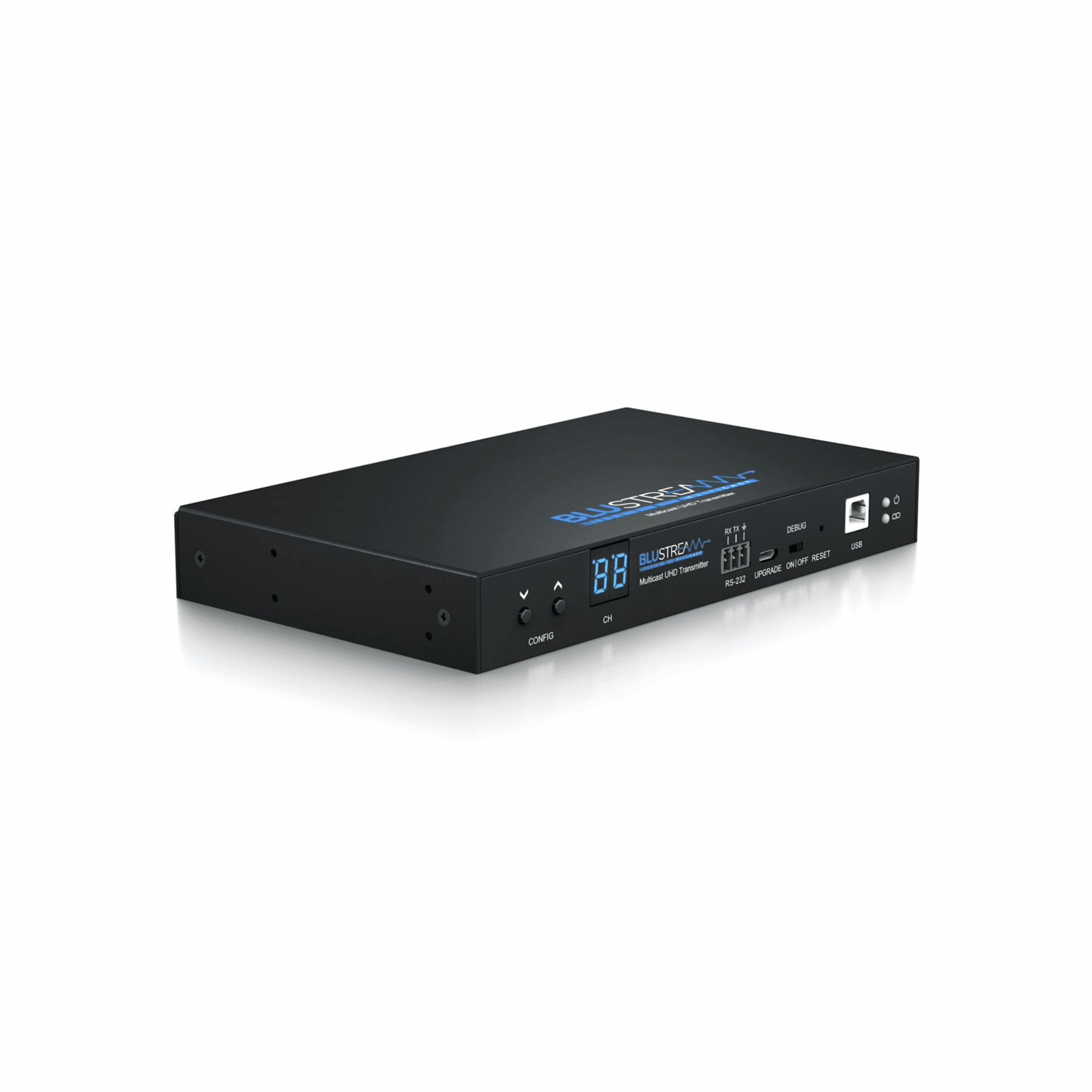

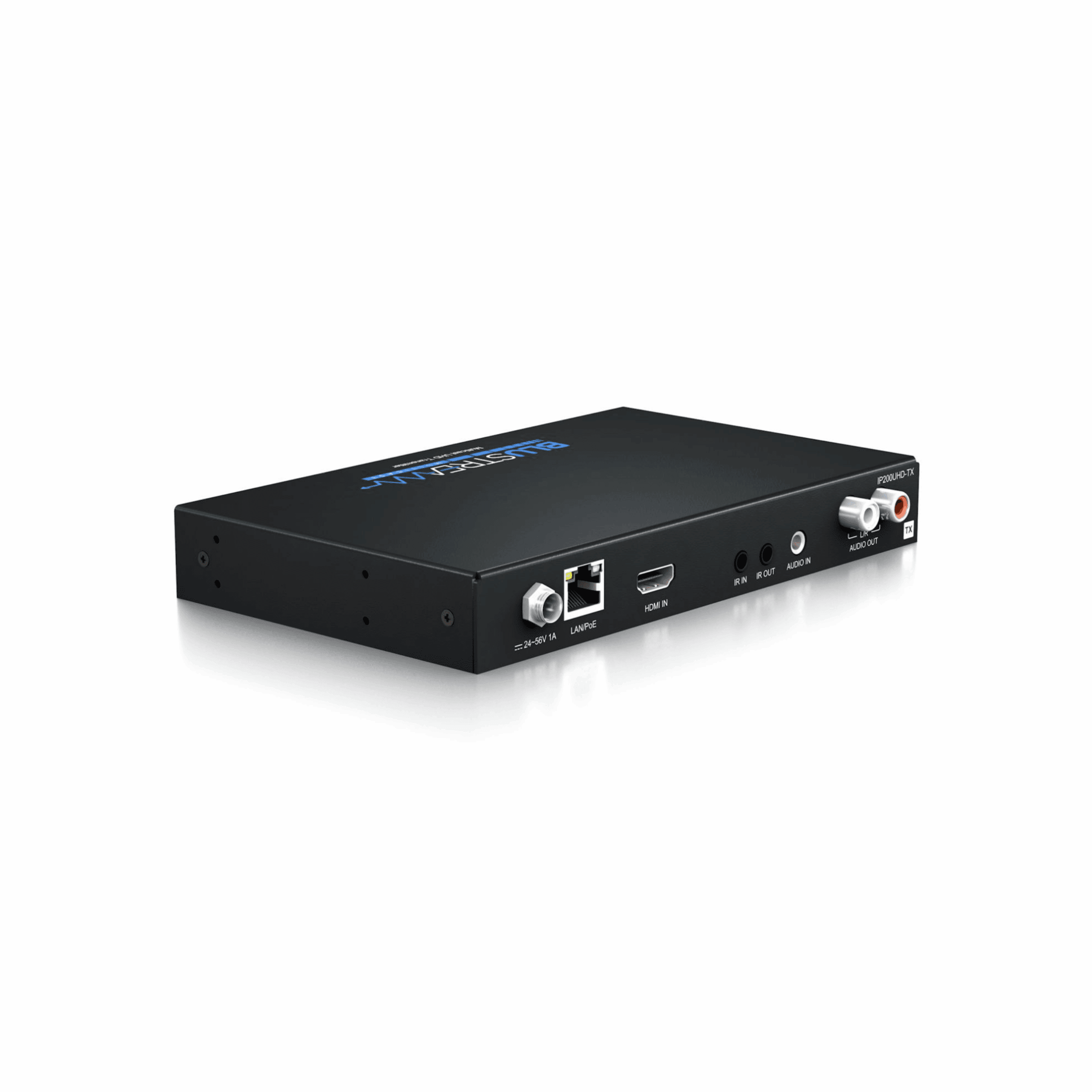

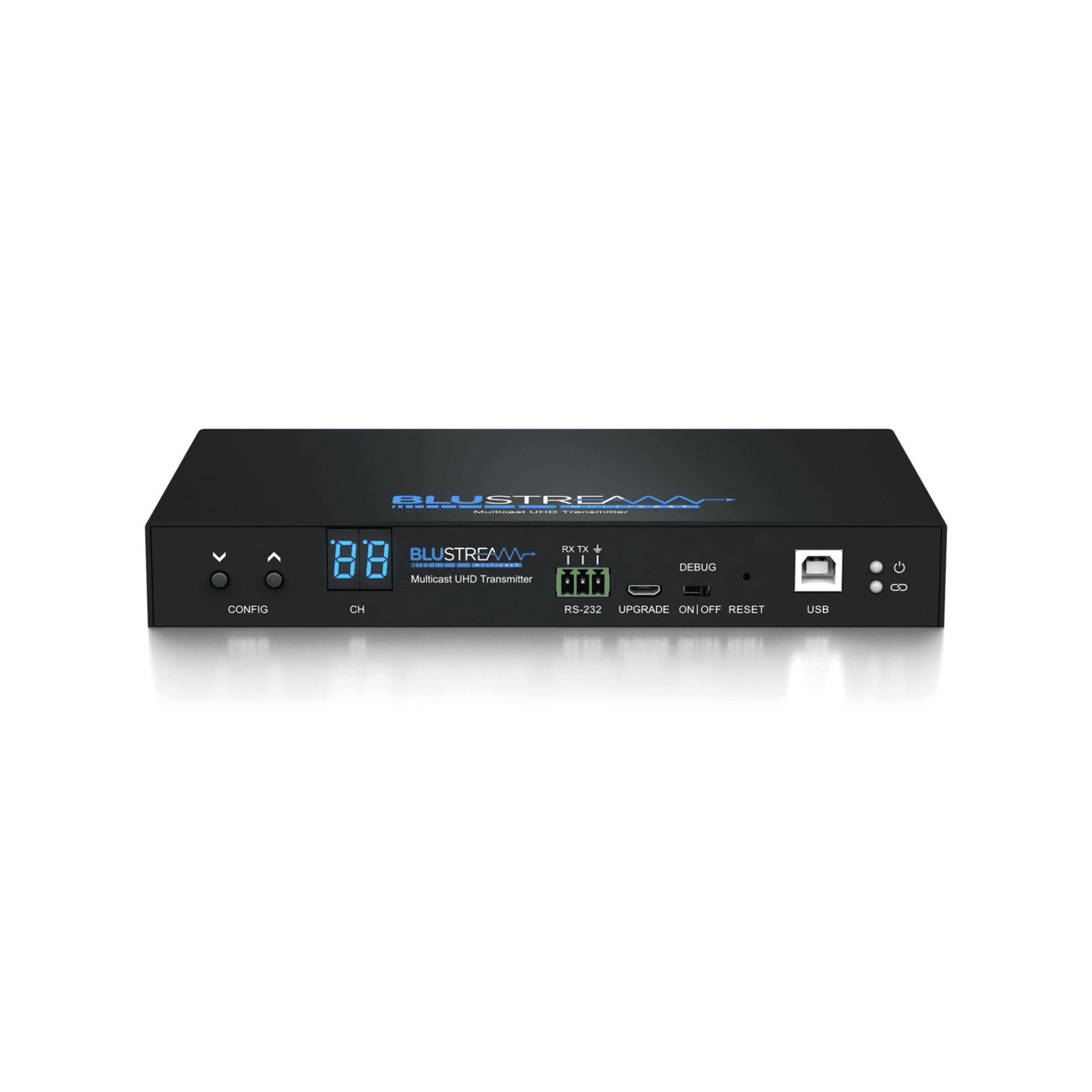

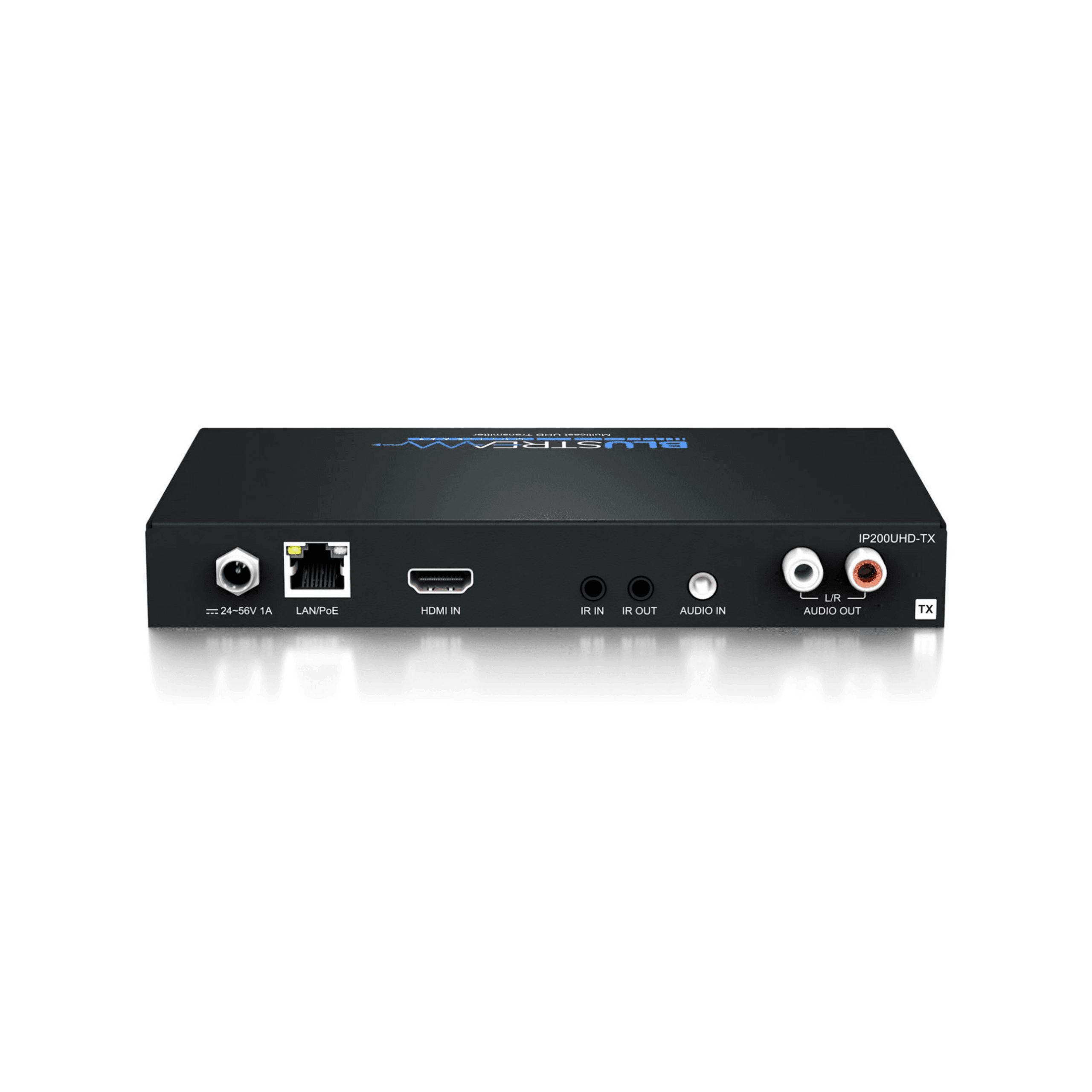

This UHD multicast distribution platform enables virtually latency free one frame distribution of HDMI video over a 1Gb network switch. The IP200UHD-TX is a 4K HDCP 2.2 HDMI transmitter that uses visually lossless compression to deliver high quality HDMI video along with bi directional IR, RS 232 and USB KVM over distances of up to 100 metres using standard network infrastructure. The IP200UHD-TX can be powered via PoE from a compatible network switch or locally if PoE is not available, and with multiple configuration options this multicast solution is well suited to a wide range of commercial and residential installation types.
UHD Video Transmitter over 1Gb Network, Bi-directional IR, RS-232 & USB/KVM, PoE, Analogue Audio Embedding, Analogue Audio Breakout, HDCP 2.2
• Advanced UHD video over 1Gb Network
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m over a single CAT cable
• Supports up to 4K HDR UHD video sources (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
• PoE (Power over Ethernet) to power Blustream products from PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Analogue L/R audio embedding
• Analogue L/R audio breakout
• Local 24-56V power supply (should Ethernet switch not support PoE) – sold separately
• Features 4 operational modes:
– Matrix distribution (requires 1GB network switch)
– Video wall (requires 1GB network switch)
– One-to-one HDMI extender (no network switch required)
– One-to-many HDMI extender (no network switch required)
Want to know more about this solution? Contact our friendly and specialist sales team today.
