PRO-IN2H2TCS
£749.00 + VAT
The PRO-IN2H2TCS board offers 2 HDBaseT™ and 2 HDMI 2.0 inputs, utilizing CSC technology to support HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal transmission over distances up to 100m (4K up to 70m). All four sources can be routed independently to any HDMI or HDBaseT™ output module. The HDBaseT™ inputs feature IR pass-through, enabling source control at each connected HDBaseT™ transmitter. Each input also provides an independent fixed-level 2-channel analog audio breakout and includes quick-release card module fittings for easy installation into the Custom Pro Matrix hub.
4-Way HDMI 2.0 & HDBaseT™ Input Board (2x HDMI / 2x HDBaseT™)
• Features 2 x HDMI and 2 x HDBaseT™ inputs which can be independently routed to video output cards
• HDMI and HDBaseT™ inputs support HDMI 2.0 18Gbps specification including up to 4K UHD 60Hz 4:4:4 and HDR resolutions*
• HDBaseT™ inputs support signal distribution up to a distance of 100m @ 1080p (4K 60Hz 4:4:4 UHD @ 70m) when used with a compatible Blustream CSC Transmitter**
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Each HDMI / HDBaseT™ input includes an independent fixed level 2ch analogue audio breakout allowing connection to a local third party audio solution (supports 2ch PCM)
• HDBaseT™ inputs include IR distribution to allow source control at each connected HDBaseT™ Transmitter
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
• HDCP 2.2 Support
*Full 4K 60Hz 4:4:4 support is subject to input / output boards specified. For HDMI 2.0 18Gbps video distribution the PRO-IN2H2TCS must be used with a Blustream CSC based HDBaseT™ Transmitter
**The PRO-IN2H2TCS does not support PoC (Power over Cable) to connected Blustream HDBaseT™ Transmitter units. A separate power supply unit must be specified

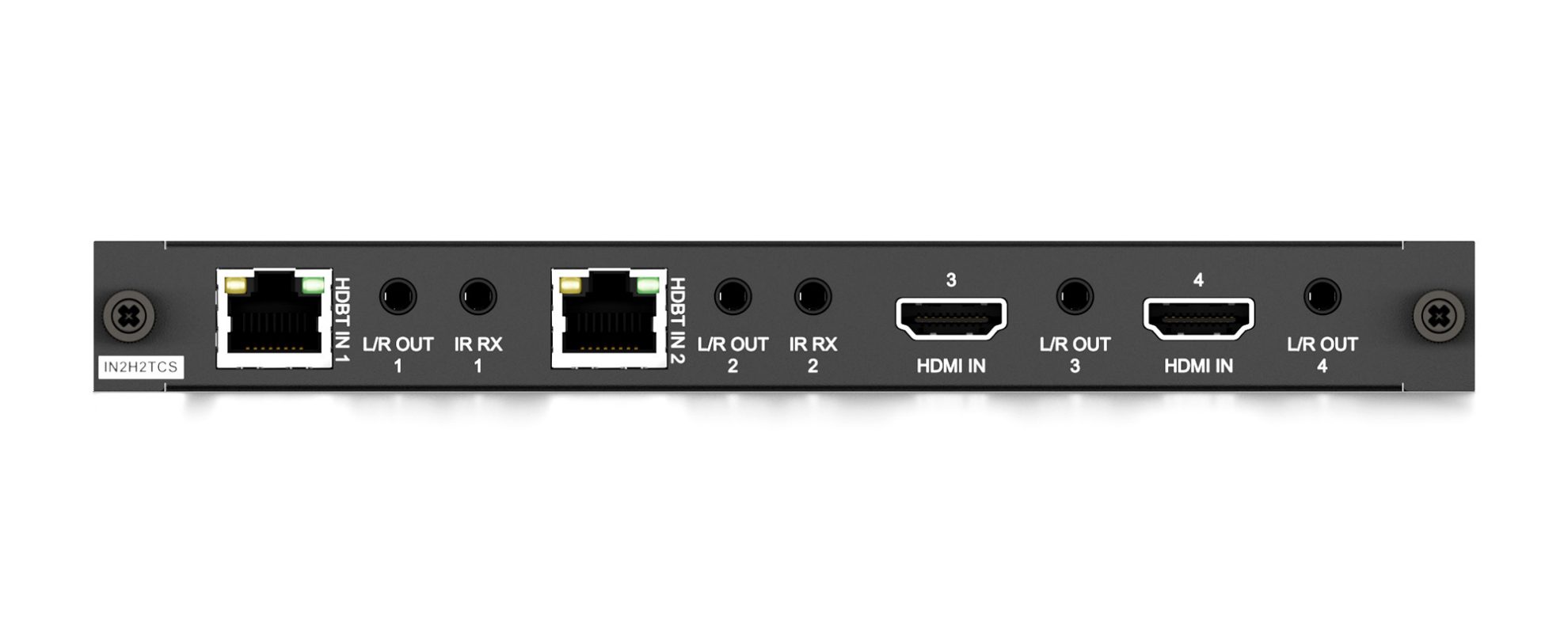

• Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connector
• Audio Output Connectors: 4 x Analogue Left/Right audio (3.5mm stereo jack)
• IR Input Ports: 2 x 3.5mm stereo jack
• Card Dimensions (W x H x D): 170mm x 22mm x 182mm
• Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
